電気配線 - エンジンおよびダッシュ（メインハーネス） ((V) Fromca000001)

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel]

自分の役割を見つける

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] - 電気配線 - エンジンおよびダッシュ（メインハーネス） ((V) FROMCA000001)

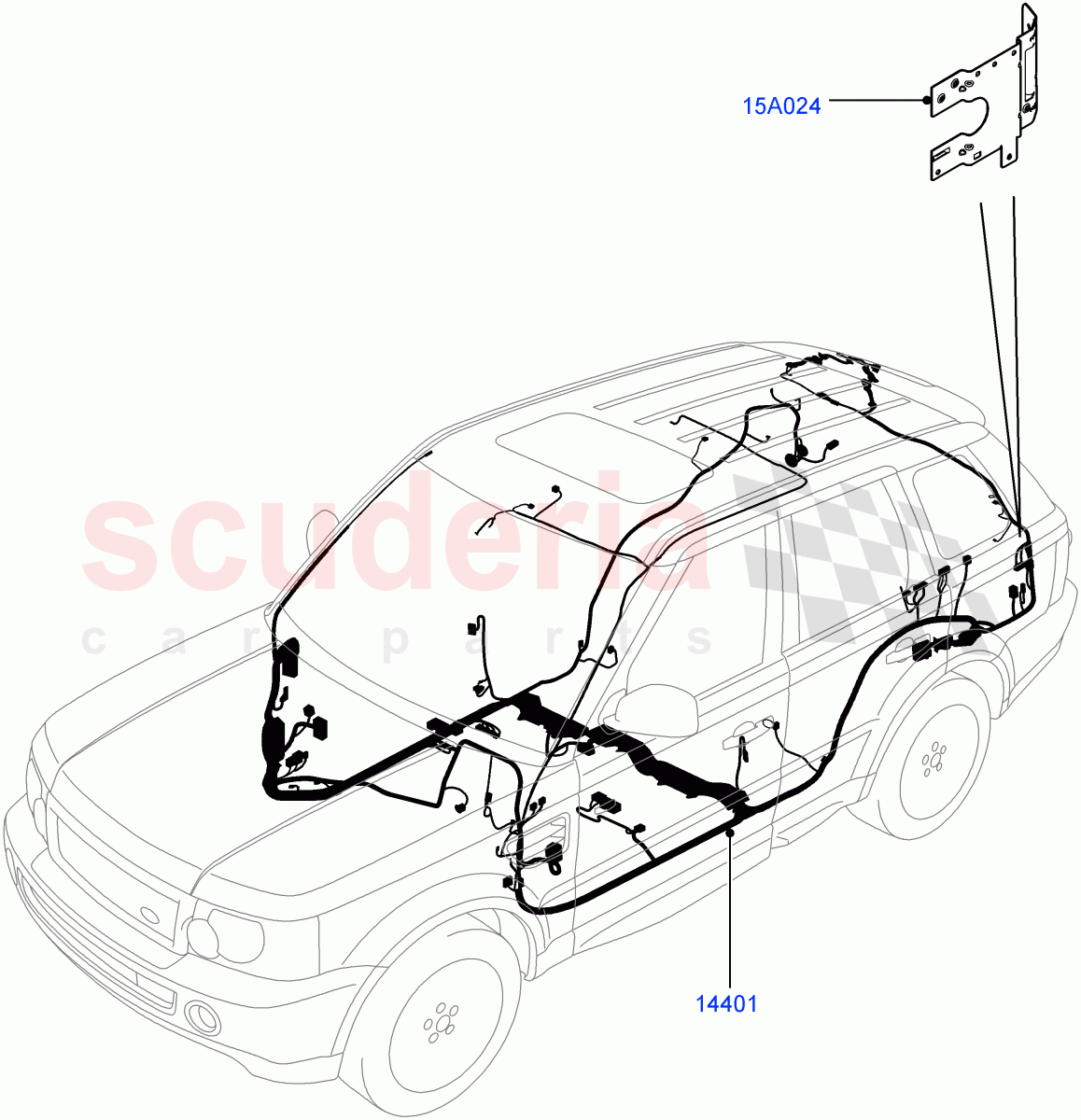

分解部品図を表示して、探している部品を見つけます:
  • 図をドラッグして位置を変更できます
  • スクロール、ピンチ、または and buttons
  • 部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。
パートキー
IN
在庫あり
AS
もうすぐ到着します
TO
注文するには
PE
お問い合わせください

写真 部品番号 説明 価格(各) ストック
LR030104 ハーネス-メイン $2,355.99 注文するには
LR030072 ハーネス-メイン $2,376.09 注文するには
LR030105 ハーネス-メイン $1,984.62 注文するには
...and 61 more part variants. See table on right for more details.
写真 部品番号 説明 価格(各) ストック
LR030594 ブラケット-リレー $6.15 注文するには
すべて見る
Electrical Wiring - Engine And Dash (Main Harness) ((V) FROMCA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] ダイアグラム タップして拡大します
# 部品詳細 価格 （各） 図の数量 カートに追加
15A024 LR030594
ブラケット-リレー
From: CA000001 		$6.15 1
14401 LR030104
ハーネス-メイン
5.0L OHC SGDI NA V8 Petrol - AJ133, LHD, Premium Audio 1280 W, Surround Camera System, With Wiring Harness (MFC) / From: CA000001 		$2,355.99 1
14401 LR030072
ハーネス-メイン
5.0L OHC SGDI SC V8 Petrol - AJ133, LHD, Premium Audio 1280 W, Surround Camera System, With Wiring Harness - NAS / From: CA000001 		$2,376.09 1
14401 LR030105
ハーネス-メイン
5.0L OHC SGDI NA V8 Petrol - AJ133, LHD, Less Front Camera, Premium Audio 1280 W, With Wiring Harness (MFC) / From: CA000001 		$1,984.62 1
14401 LR030106
ハーネス-メイン
3.0L 24V DOHC V6 TC Diesel, 6 Speed Auto Transmission ZF 6HP28, Hi Line Audio System - 600 W, RHD, Surround Camera System, With Continuous Variable Damping / From: CA000001 		$2,158.51 1
14401 LR030107
ハーネス-メイン
3.0L 24V DOHC V6 TC Diesel, 6 Speed Auto Transmission ZF 6HP28, Hi Line Audio System - 600 W, Less Adaptive Damping, RHD, Surround Camera System / From: CA000001 		$2,061.88 1
14401 LR030108
ハーネス-メイン
3.0L 24V DOHC V6 TC Diesel, 6 Speed Auto Transmission ZF 6HP28, Hi Line Audio System - 600 W, Less Front Camera, RHD, With Continuous Variable Damping / From: CA000001 		$1,926.69 1
14401 LR030109
ハーネス-メイン
3.0L 24V DOHC V6 TC Diesel, 6 Speed Auto Transmission ZF 6HP28, Hi Line Audio System - 600 W, Less Adaptive Damping, Less Front Camera, RHD, Tyre Pressure Sensors - 433 MHZ / From: CA000001 		$2,032.57 1
14401 LR030115
ハーネス-メイン
5.0L OHC SGDI SC V8 Petrol - AJ133, Hi Line Audio System - 600 W, RHD, Surround Camera System / From: CA000001 		$2,183.89 1
14401 LR030116
ハーネス-メイン
5.0L OHC SGDI SC V8 Petrol - AJ133, Hi Line Audio System - 600 W, Less Front Camera, RHD / From: CA000001 		$1,987.91 1
14401 LR030117
ハーネス-メイン
5.0L OHC SGDI NA V8 Petrol - AJ133, Hi Line Audio System - 600 W, RHD, Surround Camera System / From: CA000001 		$1,908.95 1
14401 LR030118
ハーネス-メイン
5.0L OHC SGDI NA V8 Petrol - AJ133, Hi Line Audio System - 600 W, Keyless Entry/Strt-Pass-Jap Script, Less Front Camera, RHD / From: CA000001 		$2,056.64 1
14401 LR030119
ハーネス-メイン
5.0L OHC SGDI NA V8 Petrol - AJ133, Hi Line Audio System - 600 W, Less Front Camera, RHD, With Keyless Start / From: CA000001 		$1,951.11 1
14401 LR030120
ハーネス-メイン
3.0L 24V DOHC V6 TC Diesel, 6 Speed Auto Transmission ZF 6HP28, Premium Audio 1280 W, RHD, Surround Camera System, With Continuous Variable Damping / From: CA000001 		$2,172.14 1
14401 LR030121
ハーネス-メイン
3.0L 24V DOHC V6 TC Diesel, 6 Speed Auto Transmission ZF 6HP28, Less Front Camera, Premium Audio 1280 W, RHD, With Continuous Variable Damping / From: CA000001 		$2,145.07 1
14401 LR030122
ハーネス-メイン
3.0L 24V DOHC V6 TC Diesel, 6 Speed Auto Transmission ZF 6HP28, Less Adaptive Damping, Premium Audio 1280 W, RHD, Surround Camera System / From: CA000001 		$2,075.75 1
14401 LR030123
ハーネス-メイン
3.0L 24V DOHC V6 TC Diesel, 6 Speed Auto Transmission ZF 6HP28, Less Adaptive Damping, Less Front Camera, Premium Audio 1280 W, RHD / From: CA000001 		$1,885.57 1
14401 LR030128
ハーネス-メイン
5.0L OHC SGDI SC V8 Petrol - AJ133, Premium Audio 1280 W, RHD, Surround Camera System / From: CA000001 		$2,196.33 1
14401 LR030129
ハーネス-メイン
5.0L OHC SGDI NA V8 Petrol - AJ133, Premium Audio 1280 W, RHD, Surround Camera System / From: CA000001 		$2,098.43 1
14401 LR030130
ハーネス-メイン
5.0L OHC SGDI SC V8 Petrol - AJ133, Less Front Camera, Premium Audio 1280 W, RHD / From: CA000001 		$2,169.13 1
14401 LR030131
ハーネス-メイン
5.0L OHC SGDI NA V8 Petrol - AJ133, Less Front Camera, Premium Audio 1280 W, RHD / From: CA000001 		$2,069.11 1
14401 LR030075
ハーネス-メイン
5.0L OHC SGDI SC V8 Petrol - AJ133, LHD, Less Front Camera, Premium Audio 1280 W, Rear Axle Open Style Differential, With Wiring Harness - NAS / From: CA000001 		$1,667.01 1
14401 LR030073
ハーネス-メイン
5.0L OHC SGDI NA V8 Petrol - AJ133, LHD, Less Adaptive Damping, Premium Audio 1280 W, Surround Camera System, With Wiring Harness - NAS / From: CA000001 		$3,703.60 1
14401 LR030077
ハーネス-メイン
5.0L OHC SGDI NA V8 Petrol - AJ133, LHD, Less Front Camera, Premium Audio 1280 W, Rear Axle Open Style Differential, With Wiring Harness - NAS / From: CA000001 		$1,751.94 1
14401 LR030082
ハーネス-メイン
3.0L 24V DOHC V6 TC Diesel, 6 Speed Auto Transmission ZF 6HP28, Hi Line Audio System - 600 W, Keyless Entry/Start - Passive, LHD, Less Adaptive Damping, Less Front Camera, Less Tyre Pressure Sensors / From: CA000001 		$1,699.20 1
14401 LR030083
ハーネス-メイン
3.0L 24V DOHC V6 TC Diesel, 6 Speed Auto Transmission ZF 6HP28, Hi Line Audio System - 600 W, LHD, Less Adaptive Damping, Less Front Camera, Less Keyless Entry System, Less Tyre Pressure Sensors / From: CA000001 		$1,800.22 1
14401 LR030092
ハーネス-メイン
5.0L OHC SGDI NA V8 Petrol - AJ133, Hi Line Audio System - 600 W, LHD, Less Front Camera, Less Seat Temperature Control, With Wiring Harness (MFC) / From: CA000001 		$1,908.39 1
14401 LR030103
ハーネス-メイン
5.0L OHC SGDI SC V8 Petrol - AJ133, Heated Seats - Drivers/Passengers, LHD, Less Front Camera, Premium Audio 1280 W, With Wiring Harness (MFC) / From: CA000001 		$2,026.24 1
14401 LR030110
ハーネス-メイン
3.0L 24V DOHC V6 TC Diesel, 6 Speed Auto Transmission ZF 6HP28, Hi Line Audio System - 600 W, Less Adaptive Damping, Less Front Camera, Less Tyre Pressure Sensors, RHD / From: CA000001 		$1,913.75 1
14401 LR030084
ハーネス-メイン
3.0L 24V DOHC V6 TC Diesel, 8 Speed Auto Trans ZF 8HP70 4WD, Hi Line Audio System - 600 W, LHD, Surround Camera System, With Continuous Variable Damping / From: CA000001 		$2,453.27 1
14401 LR030085
ハーネス-メイン
3.0L 24V DOHC V6 TC Diesel, 8 Speed Auto Trans ZF 8HP70 4WD, Hi Line Audio System - 600 W, LHD, Less Front Camera, With Continuous Variable Damping / From: CA000001 		$2,174.33 1
14401 LR030086
ハーネス-メイン
3.0L 24V DOHC V6 TC Diesel, 8 Speed Auto Trans ZF 8HP70 4WD, Hi Line Audio System - 600 W, LHD, Less Adaptive Damping, Surround Camera System / From: CA000001 		$2,367.04 1
14401 LR030087
ハーネス-メイン
3.0L 24V DOHC V6 TC Diesel, 8 Speed Auto Trans ZF 8HP70 4WD, Hi Line Audio System - 600 W, LHD, Less Adaptive Damping, Less Front Camera / From: CA000001 		$1,884.75 1
14401 LR030097
ハーネス-メイン
3.0L 24V DOHC V6 TC Diesel, 8 Speed Auto Trans ZF 8HP70 4WD, LHD, Premium Audio 1280 W, Surround Camera System, With Continuous Variable Damping / From: CA000001 		$2,430.78 1
14401 LR030098
ハーネス-メイン
3.0L 24V DOHC V6 TC Diesel, 8 Speed Auto Trans ZF 8HP70 4WD, LHD, Less Adaptive Damping, Premium Audio 1280 W, Surround Camera System / From: CA000001 		$2,334.07 1
14401 LR030099
ハーネス-メイン
3.0L 24V DOHC V6 TC Diesel, 8 Speed Auto Trans ZF 8HP70 4WD, LHD, Less Front Camera, Premium Audio 1280 W, With Continuous Variable Damping / From: CA000001 		$3,298.27 1
14401 LR030100
ハーネス-メイン
3.0L 24V DOHC V6 TC Diesel, 8 Speed Auto Trans ZF 8HP70 4WD, LHD, Less Adaptive Damping, Less Front Camera, Premium Audio 1280 W / From: CA000001 		$2,052.90 1
14401 LR030111
ハーネス-メイン
3.0L 24V DOHC V6 TC Diesel, 8 Speed Auto Trans ZF 8HP70 4WD, Hi Line Audio System - 600 W, RHD, Surround Camera System, With Continuous Variable Damping / From: CA000001 		$2,158.51 1
14401 LR030112
ハーネス-メイン
3.0L 24V DOHC V6 TC Diesel, 8 Speed Auto Trans ZF 8HP70 4WD, Hi Line Audio System - 600 W, Less Adaptive Damping, RHD, Surround Camera System / From: CA000001 		$2,061.88 1
14401 LR030113
ハーネス-メイン
3.0L 24V DOHC V6 TC Diesel, 8 Speed Auto Trans ZF 8HP70 4WD, Hi Line Audio System - 600 W, Less Front Camera, RHD, With Continuous Variable Damping / From: CA000001 		$2,890.05 1
14401 LR030114
ハーネス-メイン
3.0L 24V DOHC V6 TC Diesel, 8 Speed Auto Trans ZF 8HP70 4WD, Hi Line Audio System - 600 W, Less Adaptive Damping, Less Front Camera, RHD / From: CA000001 		$2,032.57 1
14401 LR030124
ハーネス-メイン
3.0L 24V DOHC V6 TC Diesel, 8 Speed Auto Trans ZF 8HP70 4WD, Premium Audio 1280 W, RHD, Surround Camera System, With Continuous Variable Damping / From: CA000001 		$2,062.25 1
14401 LR030125
ハーネス-メイン
3.0L 24V DOHC V6 TC Diesel, 8 Speed Auto Trans ZF 8HP70 4WD, Less Front Camera, Premium Audio 1280 W, RHD, With Continuous Variable Damping / From: CA000001 		$2,316.73 1
14401 LR030126
ハーネス-メイン
3.0L 24V DOHC V6 TC Diesel, 8 Speed Auto Trans ZF 8HP70 4WD, Less Adaptive Damping, Premium Audio 1280 W, RHD, Surround Camera System / From: CA000001 		$2,075.75 1
14401 LR030127
ハーネス-メイン
3.0L 24V DOHC V6 TC Diesel, 8 Speed Auto Trans ZF 8HP70 4WD, Less Adaptive Damping, Less Front Camera, Premium Audio 1280 W, RHD / From: CA000001 		$1,885.57 1
14401 LR030068
ハーネス-メイン
5.0L OHC SGDI SC V8 Petrol - AJ133, Hi Line Audio System - 600 W, LHD, Surround Camera System, With Wiring Harness - NAS / From: CA000001 		$2,458.43 1
14401 LR030074
ハーネス-メイン
5.0L OHC SGDI SC V8 Petrol - AJ133, LHD, Less Front Camera, Premium Audio 1280 W, Rear Axle Locking Differential, With Wiring Harness - NAS / From: CA000001 		$2,047.77 1
14401 LR030069
ハーネス-メイン
5.0L OHC SGDI NA V8 Petrol - AJ133, Hi Line Audio System - 600 W, LHD, Surround Camera System, With Wiring Harness - NAS / From: CA000001 		$2,639.01 1
14401 LR030070
ハーネス-メイン
5.0L OHC SGDI SC V8 Petrol - AJ133, Hi Line Audio System - 600 W, LHD, Less Front Camera, With Wiring Harness - NAS / From: CA000001 		$2,049.05 1
14401 LR030071
ハーネス-メイン
5.0L OHC SGDI NA V8 Petrol - AJ133, Hi Line Audio System - 600 W, LHD, Less Front Camera, With Wiring Harness - NAS / From: CA000001 		$1,876.91 1
14401 LR030076
ハーネス-メイン
5.0L OHC SGDI NA V8 Petrol - AJ133, LHD, Less Front Camera, Premium Audio 1280 W, Rear Axle Locking Differential, With Wiring Harness - NAS / From: CA000001 		$1,960.41 1
14401 LR030078
ハーネス-メイン
3.0L 24V DOHC V6 TC Diesel, 6 Speed Auto Transmission ZF 6HP28, Hi Line Audio System - 600 W, LHD, Surround Camera System, With Continuous Variable Damping / From: CA000001 		$3,620.46 1
14401 LR030079
ハーネス-メイン
3.0L 24V DOHC V6 TC Diesel, 6 Speed Auto Transmission ZF 6HP28, Hi Line Audio System - 600 W, LHD, Less Front Camera, With Continuous Variable Damping / From: CA000001 		$3,245.03 1
14401 LR030080
ハーネス-メイン
3.0L 24V DOHC V6 TC Diesel, 6 Speed Auto Transmission ZF 6HP28, Hi Line Audio System - 600 W, LHD, Less Adaptive Damping, Surround Camera System / From: CA000001 		$2,360.30 1
14401 LR030081
ハーネス-メイン
3.0L 24V DOHC V6 TC Diesel, 6 Speed Auto Transmission ZF 6HP28, Hi Line Audio System - 600 W, LHD, Less Adaptive Damping, Less Front Camera, Tyre Pressure Sensors - 315 MHZ / From: CA000001 		$2,952.22 1
14401 LR030088
ハーネス-メイン
5.0L OHC SGDI SC V8 Petrol - AJ133, Hi Line Audio System - 600 W, LHD, Surround Camera System, With Wiring Harness (MFC) / From: CA000001 		$2,467.97 1
14401 LR030089
ハーネス-メイン
5.0L OHC SGDI NA V8 Petrol - AJ133, Hi Line Audio System - 600 W, LHD, Surround Camera System, With Wiring Harness (MFC) / From: CA000001 		$2,384.23 1
14401 LR030090
ハーネス-メイン
5.0L OHC SGDI SC V8 Petrol - AJ133, Hi Line Audio System - 600 W, LHD, Less Front Camera, With Wiring Harness (MFC) / From: CA000001 		$1,988.97 1
14401 LR030091
ハーネス-メイン
5.0L OHC SGDI NA V8 Petrol - AJ133, Hi Line Audio System - 600 W, LHD, Less Front Camera, With Heated Seats - Front/Rear, With Wiring Harness (MFC) / From: CA000001 		$2,849.34 1
14401 LR030093
ハーネス-メイン
3.0L 24V DOHC V6 TC Diesel, 6 Speed Auto Transmission ZF 6HP28, LHD, Premium Audio 1280 W, Surround Camera System, With Continuous Variable Damping / From: CA000001 		$3,646.10 1
14401 LR030094
ハーネス-メイン
3.0L 24V DOHC V6 TC Diesel, 6 Speed Auto Transmission ZF 6HP28, LHD, Less Adaptive Damping, Premium Audio 1280 W, Surround Camera System / From: CA000001 		$2,334.07 1
14401 LR030095
ハーネス-メイン
3.0L 24V DOHC V6 TC Diesel, 6 Speed Auto Transmission ZF 6HP28, LHD, Less Front Camera, Premium Audio 1280 W, With Continuous Variable Damping / From: CA000001 		$3,233.29 1
14401 LR030096
ハーネス-メイン
3.0L 24V DOHC V6 TC Diesel, 6 Speed Auto Transmission ZF 6HP28, LHD, Less Adaptive Damping, Less Front Camera, Premium Audio 1280 W / From: CA000001 		$2,052.90 1
14401 LR030101
ハーネス-メイン
5.0L OHC SGDI SC V8 Petrol - AJ133, LHD, Less Tyre Pressure Sensors, Premium Audio 1280 W, Surround Camera System, With Wiring Harness (MFC) / From: CA000001 		$2,452.59 1
14401 LR030102
ハーネス-メイン
5.0L OHC SGDI SC V8 Petrol - AJ133, LHD, Less Front Camera, Premium Audio 1280 W, With Heated Seats - Front/Rear, With Wiring Harness (MFC) / From: CA000001 		$3,078.94 1
