電気配線-エンジンおよびダッシュ（メインハーネス）...

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel]

自分の役割を見つける

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] - 電気配線-エンジンおよびダッシュ（メインハーネス）...

分解部品図を表示して、探している部品を見つけます:
  • 図をドラッグして位置を変更できます
  • スクロール、ピンチ、または and buttons
  • 部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。
パートキー
IN
在庫あり
AS
もうすぐ到着します
TO
注文するには
PE
お問い合わせください

写真 部品番号 説明 価格(各) ストック
LR020812 ワイヤー $4,249.24 注文するには
LR020813 ワイヤー $3,938.01 注文するには
LR020811 ワイヤー $5,090.55 注文するには
...and 46 more part variants. See table on right for more details.
写真 部品番号 説明 価格(各) ストック
LR023966 配線 - 修理 $224.21 注文するには
すべて見る

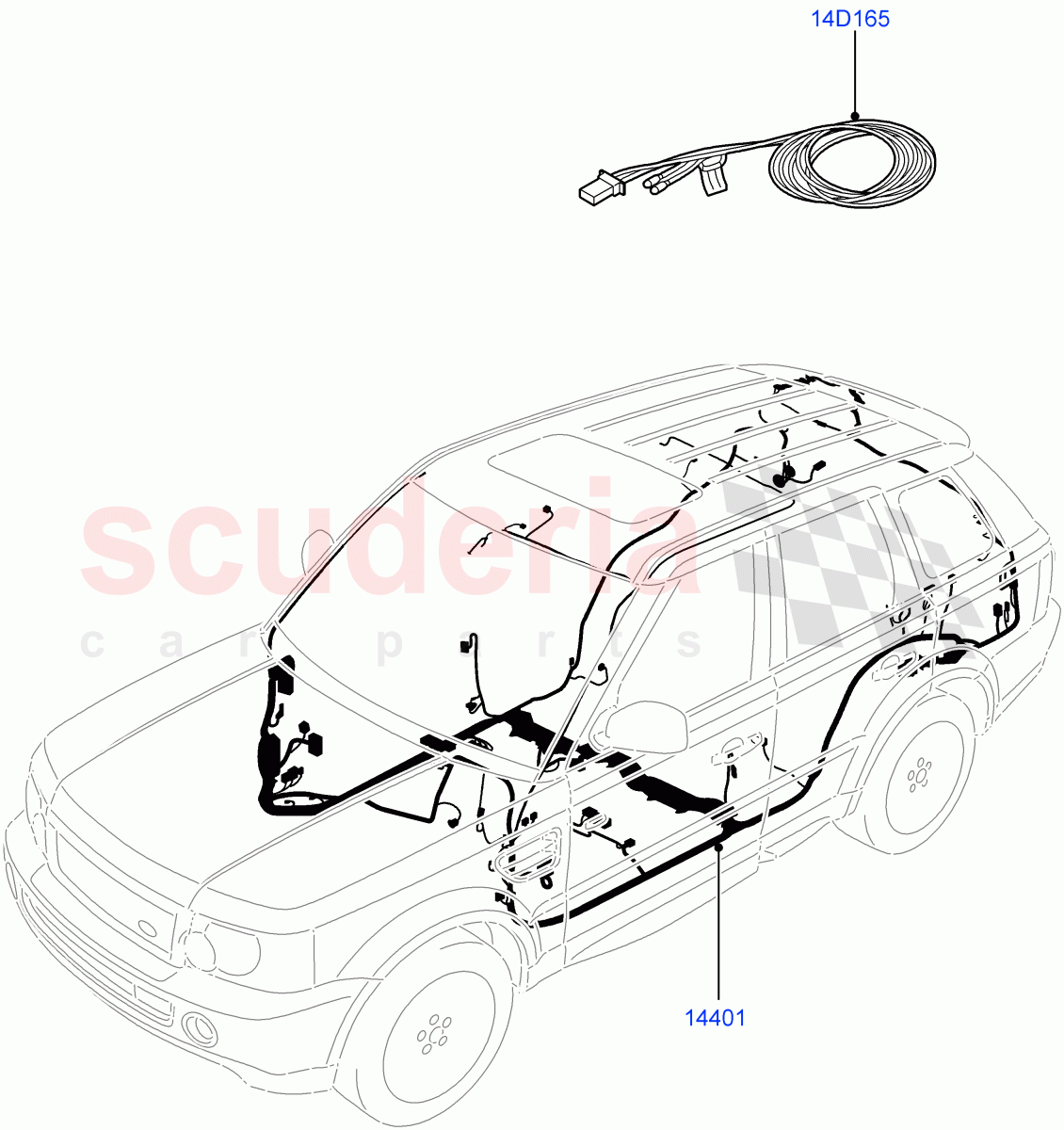

Electrical Wiring - Engine And Dash (Main Harness) ((V) FROMBA000001, (V) TOBA999999) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] ダイアグラム タップして拡大します
# 部品詳細 価格 （各） 図の数量 カートに追加
14D165 LR023966
配線 - 修理
From Connector C3283 To Connector C0256 / From: BA000001 		$224.21 1
14401 LR020812
ワイヤー
(-)"CDN/MEX/USA", 5.0L OHC SGDI NA V8 Petrol - AJ133, LHD, Surround Camera System, With Premium Sound System / From: BA000001 		$4,249.24 1
14401 LR020813
ワイヤー
(-)"CDN/MEX/USA", 5.0L OHC SGDI NA V8 Petrol - AJ133, LHD, Less Front Camera, With Premium Sound System / From: BA000001 		$3,938.01 1
14401 LR020811
ワイヤー
(+)"CDN/MEX/USA", 5.0L OHC SGDI SC V8 Petrol - AJ133, LHD, Surround Camera System, With Premium Sound System / From: BA000001 		$5,090.55 1
14401 LR020814
ワイヤー
3.0L 24V DOHC V6 TC Diesel, Hi ICE Branded, RHD, Surround Camera System, With Continuous Variable Damping / From: BA000001 		$4,455.42 1
14401 LR020815
ワイヤー
3.0L 24V DOHC V6 TC Diesel, Hi ICE Branded, Less Adaptive Damping, RHD, Surround Camera System / From: BA000001 		$4,249.88 1
14401 LR020816
ワイヤー
3.0L 24V DOHC V6 TC Diesel, Hi ICE Branded, Less Front Camera, RHD, With Continuous Variable Damping / From: BA000001 		$3,695.75 1
14401 LR020817
ワイヤー
3.0L 24V DOHC V6 TC Diesel, Hi ICE Branded, Less Adaptive Damping, Less Front Camera, RHD, With All Tyre Pressure Sensors / From: BA000001 		$4,187.41 1
14401 LR020818
ワイヤー
5.0L OHC SGDI SC V8 Petrol - AJ133, Hi ICE Branded, RHD, Surround Camera System / From: BA000001 		$4,509.34 1
14401 LR020819
ワイヤー
5.0L OHC SGDI SC V8 Petrol - AJ133, Hi ICE Branded, Less Front Camera, RHD / From: BA000001 		$4,092.41 1
14401 LR020820
ワイヤー
5.0L OHC SGDI NA V8 Petrol - AJ133, Hi ICE Branded, RHD, Surround Camera System / From: BA000001 		$4,301.00 1
14401 LR020821
ワイヤー
5.0L OHC SGDI NA V8 Petrol - AJ133, Hi ICE Branded, Less Front Camera, RHD, With Keyless Entry/Start - Passive / From: BA000001 		$4,238.65 1
14401 LR020822
ワイヤー
5.0L OHC SGDI NA V8 Petrol - AJ133, Hi ICE Branded, Less Front Camera, RHD, With Keyless Start / From: BA000001 		$4,014.71 1
14401 LR020823
ワイヤー
3.0L 24V DOHC V6 TC Diesel, RHD, Surround Camera System, With Continuous Variable Damping, With Premium Sound System / From: BA000001 		$4,484.57 1
14401 LR020824
ワイヤー
3.0L 24V DOHC V6 TC Diesel, Less Front Camera, RHD, With Continuous Variable Damping, With Premium Sound System / From: BA000001 		$4,426.58 1
14401 LR020825
ワイヤー
3.0L 24V DOHC V6 TC Diesel, Less Adaptive Damping, RHD, Surround Camera System, With Premium Sound System / From: BA000001 		$4,279.16 1
14401 LR020826
ワイヤー
3.0L 24V DOHC V6 TC Diesel, Less Adaptive Damping, Less Front Camera, RHD, With Premium Sound System / From: BA000001 		$3,874.63 1
14401 LR020827
ワイヤー
5.0L OHC SGDI SC V8 Petrol - AJ133, RHD, Surround Camera System, With Premium Sound System / From: BA000001 		$4,535.79 1
14401 LR020828
ワイヤー
5.0L OHC SGDI NA V8 Petrol - AJ133, RHD, Surround Camera System, With Premium Sound System / From: BA000001 		$4,327.70 1
14401 LR020829
ワイヤー
5.0L OHC SGDI SC V8 Petrol - AJ133, Less Front Camera, RHD, With Premium Sound System / From: BA000001 		$4,477.84 1
14401 LR020830
ワイヤー
5.0L OHC SGDI NA V8 Petrol - AJ133, Less Front Camera, RHD, With Premium Sound System / From: BA000001 		$4,265.15 1
14401 LR020832
ワイヤー
(+)"CDN/MEX/USA", 5.0L OHC SGDI SC V8 Petrol - AJ133, LHD, Less Front Camera, Rear Axle Open Style Differential, With Premium Sound System / From: BA000001 		$3,926.17 1
14401 LR020833
ワイヤー
(+)"CDN/MEX/USA", 5.0L OHC SGDI NA V8 Petrol - AJ133, LHD, Less Front Camera, Rear Axle Open Style Differential, With Premium Sound System / From: BA000001 		$3,827.66 1
14401 LR020831
ワイヤー
(+)"CDN/MEX/USA", 5.0L OHC SGDI NA V8 Petrol - AJ133, LHD, Surround Camera System, With Premium Sound System / From: BA000001 		$4,878.90 1
14401 LR020834
ワイヤー
3.0L 24V DOHC V6 TC Diesel, Hi ICE Branded, Keyless Entry/Start - Passive, LHD, Less Adaptive Damping, Less Front Camera, Less Tyre Pressure Sensors / From: BA000001 		$3,478.44 1
14401 LR020835
ワイヤー
3.0L 24V DOHC V6 TC Diesel, Hi ICE Branded, LHD, Less Adaptive Damping, Less Front Camera, Less Tyre Pressure Sensors, With Keyless Start / From: BA000001 		$4,039.18 1
14401 LR020836
ワイヤー
(-)"CDN/MEX/USA", 5.0L OHC SGDI NA V8 Petrol - AJ133, Hi ICE Branded, LHD, Less Front Camera, Less Seat Temperature Control / From: BA000001 		$3,923.07 1
14401 LR020837
ワイヤー
(-)"CDN/MEX/USA", 5.0L OHC SGDI SC V8 Petrol - AJ133, LHD, Less Front Camera, Less Seat Temperature Control, With Premium Sound System / From: BA000001 		$4,173.97 1
14401 LR020838
ワイヤー
3.0L 24V DOHC V6 TC Diesel, Hi ICE Branded, Less Adaptive Damping, Less Front Camera, Less Tyre Pressure Sensors, RHD / From: BA000001 		$3,961.63 1
14401 LR023249
ワイヤー
(+)"CDN/MEX/USA", 5.0L OHC SGDI SC V8 Petrol - AJ133, Hi ICE Branded, LHD, Surround Camera System / From: BA000001 		$5,093.25 1
14401 LR023250
ワイヤー
(+)"CDN/MEX/USA", 5.0L OHC SGDI NA V8 Petrol - AJ133, Hi ICE Branded, LHD, Surround Camera System / From: BA000001 		$4,918.16 1
14401 LR020839
ワイヤー
(+)"CDN/MEX/USA", 5.0L OHC SGDI SC V8 Petrol - AJ133, LHD, Less Front Camera, Rear Axle Locking Differential, With Premium Sound System / From: BA000001 		$4,219.70 1
14401 LR023251
ワイヤー
(+)"CDN/MEX/USA", 5.0L OHC SGDI SC V8 Petrol - AJ133, Hi ICE Branded, LHD, Less Front Camera / From: BA000001 		$4,222.39 1
14401 LR023252
ワイヤー
(+)"CDN/MEX/USA", 5.0L OHC SGDI NA V8 Petrol - AJ133, Hi ICE Branded, LHD, Less Front Camera / From: BA000001 		$3,974.87 1
14401 LR020840
ワイヤー
(+)"CDN/MEX/USA", 5.0L OHC SGDI NA V8 Petrol - AJ133, LHD, Less Front Camera, Rear Axle Locking Differential, With Premium Sound System / From: BA000001 		$4,033.93 1
14401 LR020841
ワイヤー
3.0L 24V DOHC V6 TC Diesel, Hi ICE Branded, LHD, Surround Camera System, With Continuous Variable Damping / From: BA000001 		$4,998.13 1
14401 LR020842
ワイヤー
3.0L 24V DOHC V6 TC Diesel, Hi ICE Branded, LHD, Less Front Camera, With Continuous Variable Damping / From: BA000001 		$3,695.75 1
14401 LR020843
ワイヤー
3.0L 24V DOHC V6 TC Diesel, Hi ICE Branded, LHD, Less Adaptive Damping, Surround Camera System / From: BA000001 		$4,787.97 1
14401 LR020844
ワイヤー
3.0L 24V DOHC V6 TC Diesel, Hi ICE Branded, LHD, Less Adaptive Damping, Less Front Camera, Less Keyless Entry System, With All Tyre Pressure Sensors / From: BA000001 		$4,039.18 1
14401 LR020845
ワイヤー
3.0L 24V DOHC V6 TC Diesel, Hi ICE Branded, LHD, Less Adaptive Damping, Less Camera System, Less Keyless Entry System, With All Tyre Pressure Sensors / From: BA000001 		$3,699.54 1
14401 LR020846
ワイヤー
(-)"CDN/MEX/USA", 5.0L OHC SGDI SC V8 Petrol - AJ133, Hi ICE Branded, LHD, Surround Camera System / From: BA000001 		$5,044.80 1
14401 LR020847
ワイヤー
(-)"CDN/MEX/USA", 5.0L OHC SGDI NA V8 Petrol - AJ133, Hi ICE Branded, LHD, Surround Camera System / From: BA000001 		$4,834.70 1
14401 LR020848
ワイヤー
(-)"CDN/MEX/USA", 5.0L OHC SGDI SC V8 Petrol - AJ133, Hi ICE Branded, LHD, Less Front Camera / From: BA000001 		$4,094.95 1
14401 LR020849
ワイヤー
(-)"CDN/MEX/USA", 5.0L OHC SGDI NA V8 Petrol - AJ133, Hi ICE Branded, LHD, Less Front Camera, With Heated Seats - Front/Rear / From: BA000001 		$3,903.85 1
14401 LR020850
ワイヤー
3.0L 24V DOHC V6 TC Diesel, LHD, Surround Camera System, With Continuous Variable Damping, With Premium Sound System / From: BA000001 		$5,034.48 1
14401 LR020851
ワイヤー
3.0L 24V DOHC V6 TC Diesel, LHD, Less Adaptive Damping, Surround Camera System, With Premium Sound System / From: BA000001 		$4,828.79 1
14401 LR020852
ワイヤー
3.0L 24V DOHC V6 TC Diesel, LHD, Less Front Camera, With Continuous Variable Damping, With Premium Sound System / From: BA000001 		$4,059.09 1
14401 LR020853
ワイヤー
3.0L 24V DOHC V6 TC Diesel, LHD, Less Adaptive Damping, Less Front Camera, With Premium Sound System / From: BA000001 		$4,230.52 1
14401 LR020854
ワイヤー
(-)"CDN/MEX/USA", 5.0L OHC SGDI SC V8 Petrol - AJ133, LHD, Surround Camera System, With Premium Sound System / From: BA000001 		$5,164.05 1
14401 LR020855
ワイヤー
(-)"CDN/MEX/USA", 5.0L OHC SGDI SC V8 Petrol - AJ133, LHD, Less Front Camera, With Heated Seats - Front/Rear, With Premium Sound System / From: BA000001 		$4,134.79 1
