電気配線-エンジン＆ダッシュ（メインハーネス）...

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel]

自分の役割を見つける

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] - 電気配線-エンジン＆ダッシュ（メインハーネス）...

分解部品図を表示して、探している部品を見つけます:
  • 図をドラッグして位置を変更できます
  • スクロール、ピンチ、または and buttons
  • 部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。
パートキー
IN
在庫あり
AS
もうすぐ到着します
TO
注文するには
PE
お問い合わせください

写真 部品番号 説明 価格(各) ストック
LR018678 ボルト $0.97 注文するには
写真 部品番号 説明 価格(各) ストック
LR016077 ワイヤー $3,151.01 注文するには
LR016078 ワイヤー $2,850.19 注文するには
LR016079 ワイヤー $2,850.19 注文するには
...and 33 more part variants. See table on right for more details.
写真 部品番号 説明 価格(各) ストック
LR023966 配線 - 修理 $224.21 注文するには
すべて見る

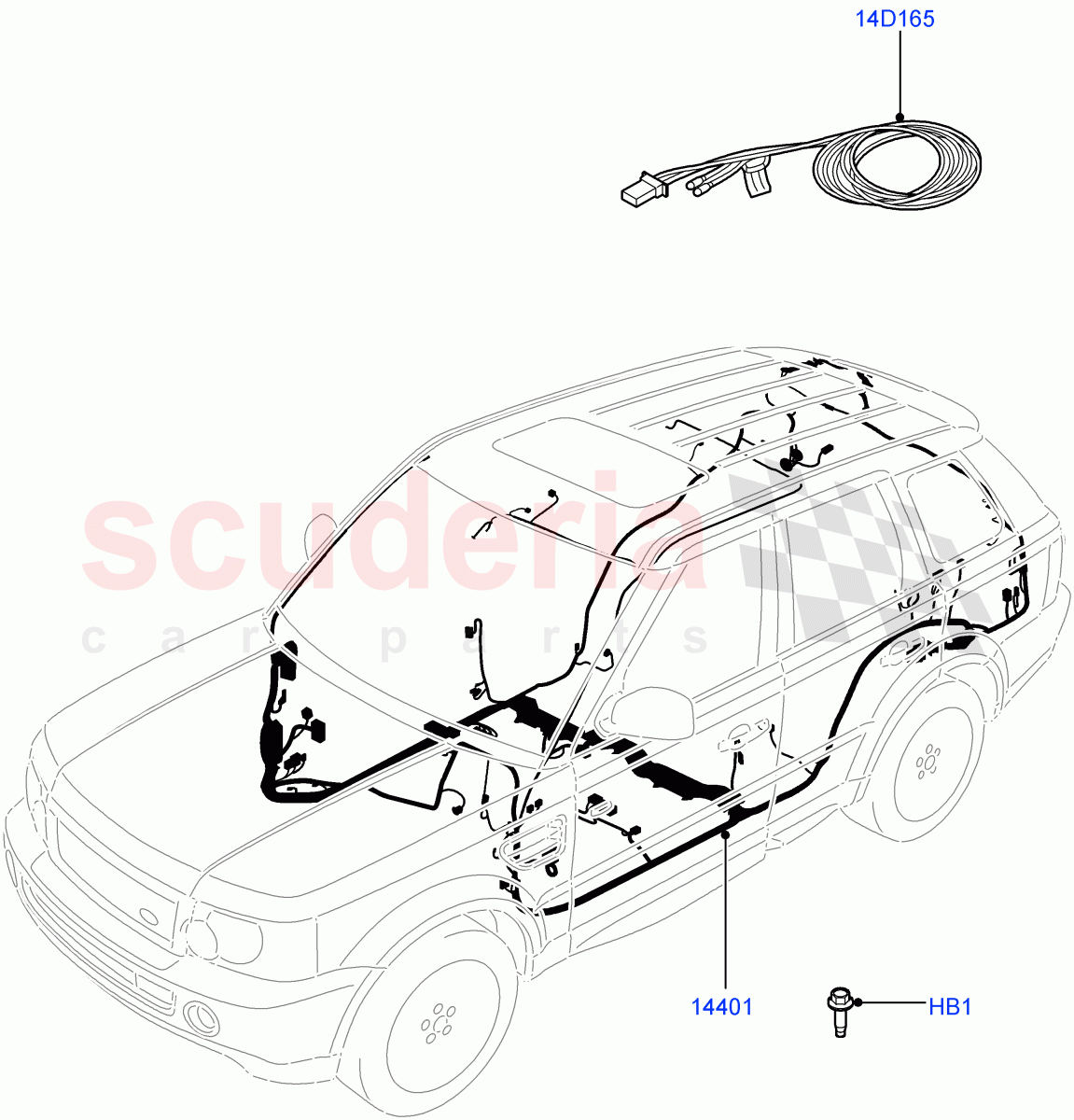

Electrical Wiring - Engine And Dash (Main Harness) ((V) FROMAA000001, (V) TOAA999999) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] ダイアグラム タップして拡大します
# 部品詳細 価格 （各） 図の数量 カートに追加
HB1 LR018678
ボルト
M8 x 18MM / From: AA000001 		$0.97 1
14D165 LR023966
配線 - 修理
From Connector C3283 To Connector C0256 / From: AA000001 		$224.21 1
14401 LR016077
ワイヤー
(-)"CDN/MEX/USA", 5.0L OHC SGDI NA V8 Petrol - AJ133, LHD, Surround Camera System, With Premium Sound System / From: AA000001 		$3,151.01 1
14401 LR016078
ワイヤー
(-)"CDN/MEX/USA", 5.0L OHC SGDI NA V8 Petrol - AJ133, LHD, Less Front Camera, With Premium Sound System / From: AA000001 		$2,850.19 1
14401 LR016079
ワイヤー
3.6L V8 32V DOHC EFi Diesel Lion, Hi ICE Branded, RHD, Surround Camera System, With Continuous Variable Damping / From: AA000001 		$2,850.19 1
14401 LR016080
ワイヤー
3.6L V8 32V DOHC EFi Diesel Lion, Hi ICE Branded, Less Adaptive Damping, RHD, Surround Camera System / From: AA000001 		$2,850.19 1
14401 LR016081
ワイヤー
3.6L V8 32V DOHC EFi Diesel Lion, Hi ICE Branded, Less Front Camera, RHD, With Continuous Variable Damping / From: AA000001 		$2,850.19 1
14401 LR016082
ワイヤー
3.0L 24V DOHC V6 TC Diesel, Hi ICE Branded, Less Adaptive Damping, Less Front Camera, RHD / From: AA000001 		$3,891.42 1
14401 LR016083
ワイヤー
5.0L OHC SGDI SC V8 Petrol - AJ133, Hi ICE Branded, RHD, Surround Camera System / From: AA000001 		$2,850.19 1
14401 LR016084
ワイヤー
5.0L OHC SGDI SC V8 Petrol - AJ133, Hi ICE Branded, Less Front Camera, RHD / From: AA000001 		$2,850.19 1
14401 LR016085
ワイヤー
5.0L OHC SGDI NA V8 Petrol - AJ133, Hi ICE Branded, RHD, Surround Camera System / From: AA000001 		$2,850.19 1
14401 LR016086
ワイヤー
5.0L OHC SGDI NA V8 Petrol - AJ133, Hi ICE Branded, Less Front Camera, RHD / From: AA000001 		$2,850.19 1
14401 LR016087
ワイヤー
3.6L V8 32V DOHC EFi Diesel Lion, RHD, Surround Camera System, With Continuous Variable Damping, With Premium Sound System / From: AA000001 		$4,245.11 1
14401 LR016088
ワイヤー
3.6L V8 32V DOHC EFi Diesel Lion, Less Front Camera, RHD, With Continuous Variable Damping, With Premium Sound System / From: AA000001 		$3,355.45 1
14401 LR016089
ワイヤー
3.0L 24V DOHC V6 TC Diesel, Less Adaptive Damping, RHD, Surround Camera System, With Premium Sound System / From: AA000001 		$2,850.19 1
14401 LR016090
ワイヤー
3.0L 24V DOHC V6 TC Diesel, Less Adaptive Damping, Less Front Camera, RHD, With Premium Sound System / From: AA000001 		$2,850.19 1
14401 LR016091
ワイヤー
5.0L OHC SGDI SC V8 Petrol - AJ133, RHD, Surround Camera System, With Premium Sound System / From: AA000001 		$4,275.26 1
14401 LR016092
ワイヤー
5.0L OHC SGDI NA V8 Petrol - AJ133, RHD, Surround Camera System, With Premium Sound System / From: AA000001 		$2,850.19 1
14401 LR016093
ワイヤー
5.0L OHC SGDI SC V8 Petrol - AJ133, Less Front Camera, RHD, With Premium Sound System / From: AA000001 		$2,850.19 1
14401 LR016094
ワイヤー
5.0L OHC SGDI NA V8 Petrol - AJ133, Less Front Camera, RHD, With Premium Sound System / From: AA000001 		$2,850.19 1
14401 LR016059
ワイヤー
(+)"CDN/MEX/USA", Surround Camera System, With Continuous Variable Damping, With Premium Sound System / From: AA000001 		$4,726.49 1
14401 LR016060
ワイヤー
(+)"CDN/MEX/USA", Less Adaptive Damping, Surround Camera System, With Premium Sound System / From: AA000001 		$3,151.01 1
14401 LR016061
ワイヤー
(+)"CDN/MEX/USA", Less Front Camera, With Continuous Variable Damping, With Premium Sound System / From: AA000001 		$3,695.75 1
14401 LR016062
ワイヤー
(+)"CDN/MEX/USA", Less Adaptive Damping, Less Front Camera, With Premium Sound System / From: AA000001 		$3,948.30 1
14401 LR016063
ワイヤー
3.6L V8 32V DOHC EFi Diesel Lion, Hi ICE Branded, LHD, Surround Camera System, With Continuous Variable Damping / From: AA000001 		$3,151.01 1
14401 LR016064
ワイヤー
3.6L V8 32V DOHC EFi Diesel Lion, Hi ICE Branded, LHD, Less Front Camera, With Continuous Variable Damping / From: AA000001 		$4,050.23 1
14401 LR016065
ワイヤー
3.6L V8 32V DOHC EFi Diesel Lion, Hi ICE Branded, LHD, Less Adaptive Damping, Surround Camera System / From: AA000001 		$3,151.01 1
14401 LR016066
ワイヤー
3.0L 24V DOHC V6 TC Diesel, Hi ICE Branded, LHD, Less Adaptive Damping, Less Front Camera / From: AA000001 		$3,994.82 1
14401 LR016067
ワイヤー
(-)"CDN/MEX/USA", 5.0L OHC SGDI SC V8 Petrol - AJ133, Hi ICE Branded, LHD, Surround Camera System / From: AA000001 		$3,712.86 1
14401 LR016068
ワイヤー
(-)"CDN/MEX/USA", 5.0L OHC SGDI NA V8 Petrol - AJ133, Hi ICE Branded, LHD, Surround Camera System / From: AA000001 		$3,151.01 1
14401 LR016069
ワイヤー
(-)"CDN/MEX/USA", 5.0L OHC SGDI SC V8 Petrol - AJ133, Hi ICE Branded, LHD, Less Front Camera / From: AA000001 		$2,850.19 1
14401 LR016070
ワイヤー
(-)"CDN/MEX/USA", 5.0L OHC SGDI NA V8 Petrol - AJ133, Hi ICE Branded, LHD, Less Front Camera / From: AA000001 		$3,961.63 1
14401 LR016071
ワイヤー
3.6L V8 32V DOHC EFi Diesel Lion, LHD, Surround Camera System, With Continuous Variable Damping, With Premium Sound System / From: AA000001 		$4,726.49 1
14401 LR016072
ワイヤー
3.6L V8 32V DOHC EFi Diesel Lion, LHD, Less Adaptive Damping, Surround Camera System, With Premium Sound System / From: AA000001 		$3,151.01 1
14401 LR016073
ワイヤー
3.6L V8 32V DOHC EFi Diesel Lion, LHD, Less Front Camera, With Continuous Variable Damping, With Premium Sound System / From: AA000001 		$3,372.75 1
14401 LR016074
ワイヤー
3.6L V8 32V DOHC EFi Diesel Lion, LHD, Less Adaptive Damping, Less Front Camera, With Premium Sound System / From: AA000001 		$4,050.23 1
14401 LR016075
ワイヤー
(-)"CDN/MEX/USA", 5.0L OHC SGDI SC V8 Petrol - AJ133, LHD, Surround Camera System, With Premium Sound System / From: AA000001 		$3,151.01 1
14401 LR016076
ワイヤー
(-)"CDN/MEX/USA", 5.0L OHC SGDI SC V8 Petrol - AJ133, LHD, Less Front Camera, With Premium Sound System / From: AA000001 		$2,850.19 1
