ボディ・リア電気配線 (サービス・リペア・リンク - カメラ) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

自分の役割を見つける

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - ボディ・リア電気配線 (サービス・リペア・リンク - カメラ) ((V) FROMAA000001)

分解部品図を表示して、探している部品を見つけます:
  • 図をドラッグして位置を変更できます
  • スクロール、ピンチ、または and buttons
  • 部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。
パートキー
IN
在庫あり
AS
もうすぐ到着します
TO
注文するには
PE
お問い合わせください

写真 部品番号 説明 価格(各) ストック
LR022531 配線 - 修理 $77.11 注文するには
LR022532 配線 - 修理 $74.30 注文するには
LR022533 配線 - 修理 $112.88 注文するには
...and 17 more part variants. See table on right for more details.
すべて見る

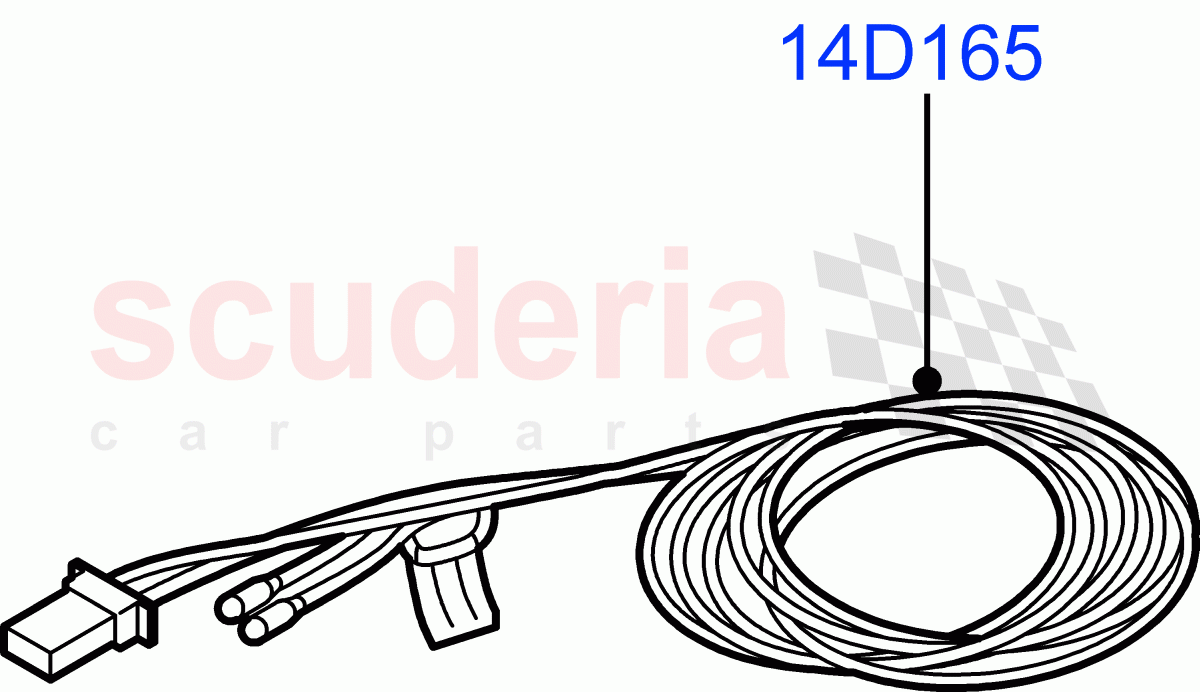

Electrical Wiring - Body And Rear (Service Repair Links - Camera) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] ダイアグラム タップして拡大します
# 部品詳細 価格 （各） 図の数量 カートに追加
14D165 LR022531
配線 - 修理
RHD, Surround Camera System / From Connector C2674 To Connector C3340, Please Refer To Electrical Library In TOPIx / From: AA000001 / To: AA313085 		$77.11 1
14D165 LR022532
配線 - 修理
RHD, Surround Camera System / From Connector C3439 To Connector C3342, Please Refer To Electrical Library In TOPIx / From: AA000001 / To: AA313085 		$74.30 1
14D165 LR022533
配線 - 修理
RHD, Surround Camera System / From Connector C3443 To Connector C3346, Please Refer To Electrical Library In TOPIx / From: AA000001 / To: AA313085 		$112.88 1
14D165 LR022534
配線 - 修理
LHD, Surround Camera System / From Connector C0464 To Connector C3343, Please Refer To Electrical Library In TOPIx / From: AA000001 / To: AA313085 		$81.07 1
14D165 LR022535
配線 - 修理
LHD, Surround Camera System / From Connector C0337 To Connector C3353, Please Refer To Electrical Library In TOPIx / From: AA000001 / To: AA313085 		$58.65 1
14D165 LR022536
配線 - 修理
RHD, Surround Camera System / From Connector C0464 To Connector C3344, Please Refer To Electrical Library In TOPIx / From: AA000001 / To: AA313085 		$96.36 1
14D165 LR022537
配線 - 修理
RHD, Surround Camera System / From Connector C0464 To Connector C3344, Please Refer To Electrical Library In TOPIx / From: AA000001 / To: AA313085 		$38.52 1
14D165 LR022538
配線 - 修理
RHD, Surround Camera System / From Connector C2820 To Connector C3338, Please Refer To Electrical Library In TOPIx / From: AA000001 / To: BA334342 		$43.96 1
14D165 LR022539
配線 - 修理
RHD, Rear View Camera-Fixed / From Connector C2820 To Connector C3338, Please Refer To Electrical Library In TOPIx / From: AA000001 / To: BA334342 		$48.12 1
14D165 LR025929
配線 - 修理
RHD, Surround Camera System / From Connector C2674 To Connector C3340, Please Refer To Electrical Library In TOPIx / From: AA313086 / To: BA334342 		$149.29 1
14D165 LR025930
配線 - 修理
LHD, Surround Camera System / From Connector C2675 To Connector C2327, Please Refer To Electrical Library In TOPIx / From: AA000001 / To: BA334342 		$223.64 1
14D165 LR025931
配線 - 修理
LHD, Surround Camera System / From Connector C2328 To Connector C3347, Please Refer To Electrical Library In TOPIx / From: AA000001 / To: BA334342 		$127.11 1
14D165 LR025932
配線 - 修理
RHD, Surround Camera System / From Connector C3439 To Connector C3342, Please Refer To Electrical Library In TOPIx / From: AA313086 / To: BA334342 		$71.84 1
14D165 LR025933
配線 - 修理
LHD, Surround Camera System / From Connector C3392 To Connector C3440, Please Refer To Electrical Library In TOPIx / From: AA000001 / To: BA334342 		$104.97 1
14D165 LR025934
配線 - 修理
LHD, Surround Camera System / From Connector C3349 To Connector C3394, Please Refer To Electrical Library In TOPIx / From: AA000001 / To: BA334342 		$120.05 1
14D165 LR025935
配線 - 修理
RHD, Surround Camera System / From Connector C3443 To Connector C3346, Please Refer To Electrical Library In TOPIx / From: AA313086 / To: BA334342 		$143.31 1
14D165 LR025937
配線 - 修理
LHD, Surround Camera System / From Connector C0460 To Connector C3344, Please Refer To Electrical Library In TOPIx / From: AA000001 / To: BA334342 		$167.62 1
14D165 LR025938
配線 - 修理
RHD, Surround Camera System / From Connector C0337 To Connector C3353, Please Refer To Electrical Library In TOPIx / From: AA313086 / To: BA334342 		$53.05 1
14D165 LR025936
配線 - 修理
RHD, Surround Camera System / From Connector C0460 To Connector C3343, Please Refer To Electrical Library In TOPIx / From: AA000001 / To: BA334342 		$142.70 1
14D165 LR025939
配線 - 修理
RHD, Surround Camera System / From Connector C0464 To Connector C3344, Please Refer To Electrical Library In TOPIx / From: AA313086 / To: BA334342 		$188.50 1
