ボディ・リア電気配線 (サービス・リペア・リンク - カメラ) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol]

自分の役割を見つける

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] - ボディ・リア電気配線 (サービス・リペア・リンク - カメラ) ((V) FROMAA000001)

分解部品図を表示して、探している部品を見つけます:
  • 図をドラッグして位置を変更できます
  • スクロール、ピンチ、または and buttons
  • 部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。
パートキー
IN
在庫あり
AS
もうすぐ到着します
TO
注文するには
PE
お問い合わせください

写真 部品番号 説明 価格(各) ストック
LR022544 配線 - 修理 $69.14 注文するには
LR022545 配線 - 修理 $69.14 注文するには
LR022547 配線 - 修理 $52.97 注文するには
...and 29 more part variants. See table on right for more details.
すべて見る

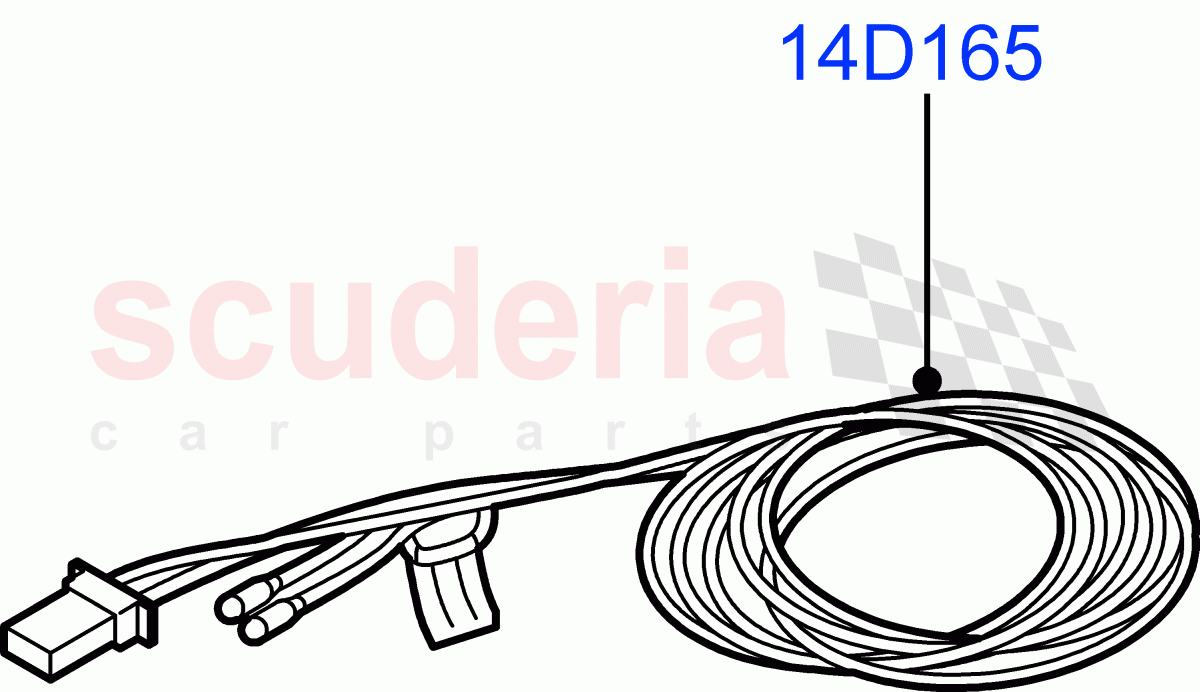

Electrical Wiring - Body And Rear (Service Repair Links - Camera) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] ダイアグラム タップして拡大します
# 部品詳細 価格 （各） 図の数量 カートに追加
14D165 LR022544
配線 - 修理
LHD / From Connector C3359L To Connector C3342, Please Refer To Electrical Library In TOPIx / From: AA000001 / To: AA262641 		$69.14 1
14D165 LR022545
配線 - 修理
LHD / From Connector C2674L To Connector C3340, Please Refer To Electrical Library In TOPIx / From: AA000001 / To: AA262641 		$69.14 1
14D165 LR022547
配線 - 修理
RHD / From Connector C3359R To Connector C3342, Please Refer To Electrical Library In TOPIx / From: AA000001 / To: AA262641 		$52.97 1
14D165 LR022548
配線 - 修理
RHD / From Connector C2674R To Connector C3340, Please Refer To Electrical Library In TOPIx / From: AA000001 / To: AA262641 		$52.41 1
14D165 LR022549
配線 - 修理
From Connector C0460 To Connector C3343, Please Refer To Electrical Library In TOPIx / From: AA000001 / To: AA262641 		$69.14 1
14D165 LR022550
配線 - 修理
From Connector C0464 To Connector C3344, Please Refer To Electrical Library In TOPIx / From: AA000001 / To: AA262641 		$54.59 1
14D165 LR022551
配線 - 修理
RHD / From Connector C2788T To Connector C3346, Please Refer To Electrical Library In TOPIx / From: AA000001 / To: AA262641 		$127.41 1
14D165 LR022554
配線 - 修理
LHD / From Connector C3443T To Connector C1185, Please Refer To Electrical Library In TOPIx / From: AA000001 		$120.45 1
14D165 LR022555
配線 - 修理
From Connector C3338 To Connector C1185, Please Refer To Electrical Library In TOPIx / From: AA000001 / To: AA262641 		$13.86 1
14D165 LR025329
配線 - 修理
LHD / From Connector C3359L To Connector C3342, Please Refer To Electrical Library In TOPIx / From: BA262642 		$72.42 1
14D165 LR025330
配線 - 修理
LHD / From Connector C2674L To Connector C3340, Please Refer To Electrical Library In TOPIx / From: BA262642 		$52.04 1
14D165 LR025331
配線 - 修理
RHD / From Connector C3359R To Connector C3342, Please Refer To Electrical Library In TOPIx / From: BA262642 		$39.05 1
14D165 LR025332
配線 - 修理
RHD / From Connector C2674R To Connector C3340, Please Refer To Electrical Library In TOPIx / From: BA262642 		$37.40 1
14D165 LR025333
配線 - 修理
From Connector C0460 To Connector C3343, Please Refer To Electrical Library In TOPIx / From: BA262642 		$49.19 1
14D165 LR025334
配線 - 修理
From Connector C0464 To Connector C3344, Please Refer To Electrical Library In TOPIx / From: BA262642 		$40.28 1
14D165 LR025338
配線 - 修理
RHD / From Connector C2788T To Connector C3346, Please Refer To Electrical Library In TOPIx / From: BA262642 		$213.01 1
14D165 LR025336
配線 - 修理
From Connector C3338 To Connector C1185, Please Refer To Electrical Library In TOPIx / From: BA262642 / To: BA999999 		$22.65 1
14D165 LR025527
配線 - 修理
LHD / From Connector C3392 To Connector C2675, Please Refer To Electrical Library In TOPIx / From: AA000001 		$64.12 1
14D165 LR025528
配線 - 修理
RHD / From Connector C3392 To Connector C2675, Please Refer To Electrical Library In TOPIx / From: AA000001 		$103.43 1
14D165 LR025529
配線 - 修理
LHD / From Connector C3393 To Connector C3360, Please Refer To Electrical Library In TOPIx / From: AA000001 		$63.45 1
14D165 LR025530
配線 - 修理
RHD / From Connector C3393 To Connector C3360, Please Refer To Electrical Library In TOPIx / From: AA000001 		$103.69 1
14D165 LR025525
配線 - 修理
LHD / From Connector C3351 To Connector C3504, Please Refer To Electrical Library In TOPIx / From: AA000001 		$37.24 1
14D165 LR025526
配線 - 修理
LHD / From Connector C3353 To Connector C3503, Please Refer To Electrical Library In TOPIx / From: AA000001 		$37.24 1
14D165 LR025534
配線 - 修理
LHD / From Connector C3395 To Connector C3349, Please Refer To Electrical Library In TOPIx / From: AA000001 		$126.64 1
14D165 LR025535
配線 - 修理
LHD / From Connector C3394 To Connector C3347, Please Refer To Electrical Library In TOPIx / From: AA000001 		$122.40 1
14D165 LR043252
配線 - 修理
From Connector C3338 To Connector C1185, Please Refer To Electrical Library In TOPIx / From: CA000001 		$50.42 1
14D165 LR043253
配線 - 修理
From Connector C0144S To Connector C1185, Please Refer To Electrical Library In TOPIx / From: CA000001 		$44.55 1
14D165 LR043254
配線 - 修理
From Connector C0144T To Connector C1185, Please Refer To Electrical Library In TOPIx / From: CA000001 		$39.71 1
14D165 LR043257
配線 - 修理
From Connector C1185 To Connector C0144S, Please Refer To Electrical Library In TOPIx / From: CA000001 		$68.53 1
14D165 LR043256
配線 - 修理
From Connector C1185 To Connector C3338, Please Refer To Electrical Library In TOPIx / From: CA000001 		$32.85 1
14D165 LR061693
配線 - 修理
AK2 Repair Kit Available. Curtain Airbag, LH Side, Please Refer To Electrical Library In TOPIx / From: DA000001 		$23.81 1
14D165 LR061694
配線 - 修理
AK2 Repair Kit Available. Curtain Airbag, Please Refer To Electrical Library In TOPIx, RH Side / From: DA000001 		$23.81 1
