電気配線-ボディおよびリア（バンパー）（バージョン-コア、非Svr）

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6]

自分の役割を見つける

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] - 電気配線-ボディおよびリア（バンパー）（バージョン-コア、非SVR）

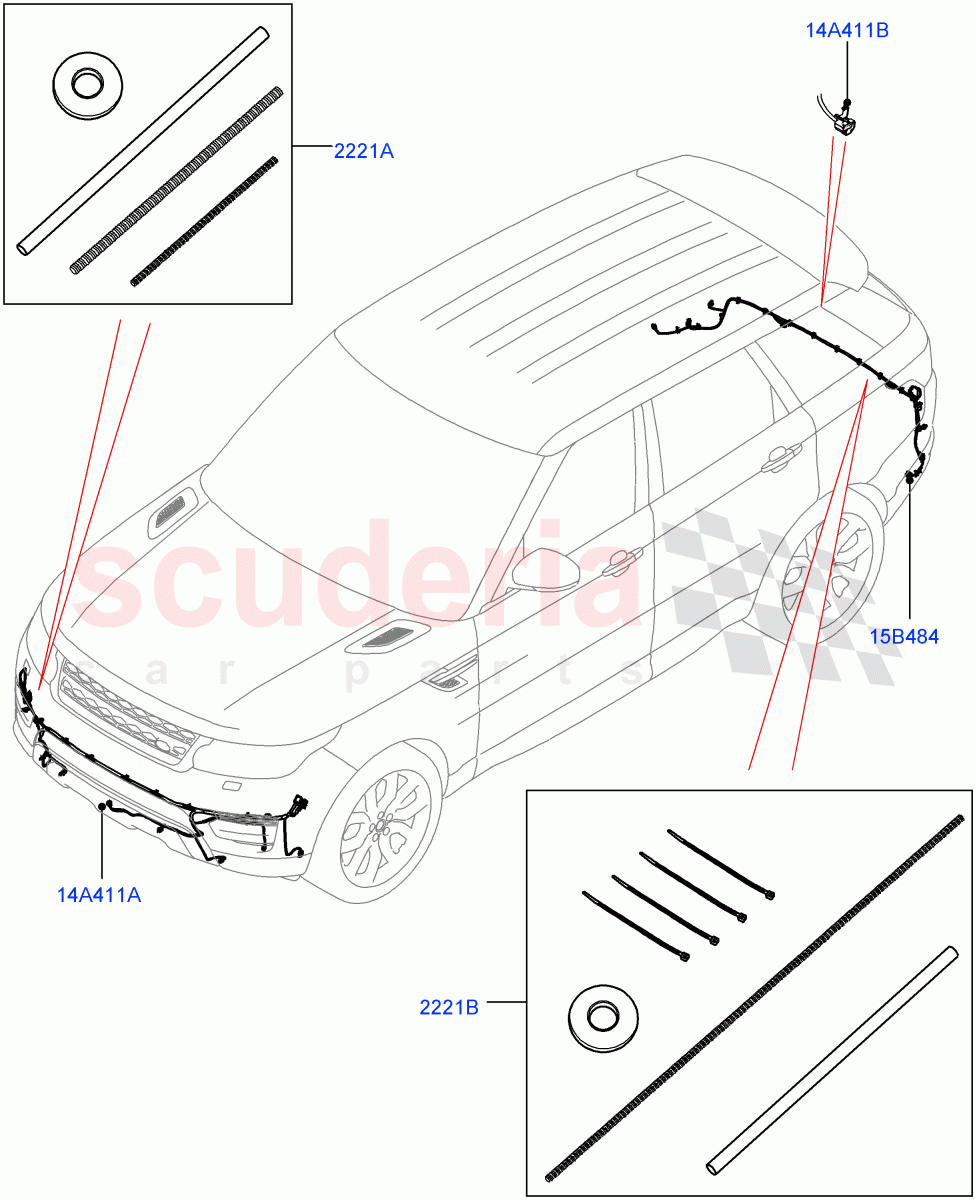

分解部品図を表示して、探している部品を見つけます:
  • 図をドラッグして位置を変更できます
  • スクロール、ピンチ、または and buttons
  • 部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。
パートキー
IN
在庫あり
AS
もうすぐ到着します
TO
注文するには
PE
お問い合わせください

写真 部品番号 説明 価格(各) ストック
LR060969 キット - ワイヤー $31.13 注文するには
写真 部品番号 説明 価格(各) ストック
LR060970 キット - ワイヤー $27.41 注文するには
写真 部品番号 説明 価格(各) ストック
LR050250 配線 - バンパー $90.43 注文するには
LR050249 配線 - バンパー $91.81 注文するには
LR053995 配線 - バンパー $96.61 注文するには
...and 25 more part variants. See table on right for more details.
写真 部品番号 説明 価格(各) ストック
LR042325 ワイヤー - ジャンパー $434.71 注文するには
LR042324 配線 - バンパー $697.95 注文するには
LR050545 配線 - バンパー $161.78 注文するには
...and 70 more part variants. See table on right for more details.
写真 部品番号 説明 価格(各) ストック
LR049994 配線 - ブラインドスポットモニター $102.42 注文するには
すべて見る
Electrical Wiring - Body And Rear (Bumper) (Version - Core, Non SVR) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] ダイアグラム タップして拡大します
# 部品詳細 価格 （各） 図の数量 カートに追加
14A411A LR042325
ワイヤー - ジャンパー
Less Automated Parking System, Less Front Camera, With Front Fog Lamps, With Front Parking Aid / Located In Front Bumper / To: EA309590 		$434.71 1
14A411A LR042324
配線 - バンパー
Autom Perpendicular Parking System, Surround Camera System, With Front Fog Lamps, With Front Parking Aid / Located In Front Bumper / To: EA309590 		$697.95 1
14A411A LR050545
配線 - バンパー
Less Automated Parking System, Surround Camera System, With Front Fog Lamps, With Front Parking Aid / Located In Front Bumper / To: EA309590 		$161.78 1
14A411A LR050547
配線 - バンパー
Less Automated Parking System, Less Front Fog Lamps, Surround Camera System, With Front Parking Aid / Located In Front Bumper / To: EA309590 		$161.78 1
14A411A LR050548
配線 - バンパー
Less Front Fog Lamps, Surround Camera System, With Automated Parking System, With Front Parking Aid / Located In Front Bumper / To: EA309590 		$161.78 1
14A411A LR050549
配線 - バンパー
Less Automated Parking System, Less Front Camera, Less Front Fog Lamps, With Front Parking Aid / Located In Front Bumper / To: EA309590 		$161.78 1
14A411A LR050550
配線 - バンパー
Autom Perpendicular Parking System, Less Camera System, With Front Parking Aid / Located In Front Bumper / To: EA309590 		$161.78 1
14A411A LR050551
配線 - バンパー
Less Automated Parking System, Less Front Fog Lamps, Less Front Parking Aid, Surround Camera System / Located In Front Bumper / To: EA309590 		$161.78 1
14A411A LR050552
配線 - バンパー
Less Automated Parking System, Less Front Parking Aid, Surround Camera System, With Front Fog Lamps / Located In Front Bumper / To: EA309590 		$161.78 1
14A411A LR050553
配線 - バンパー
Less Automated Parking System, Less Front Camera, Less Front Parking Aid, With Front Fog Lamps / Located In Front Bumper / To: EA309590 		$161.78 1
14A411A LR050546
配線 - バンパー
Autom Perpendicular Parking System, Less Front Camera, With Front Fog Lamps, With Front Parking Aid / Located In Front Bumper / To: EA309590 		$156.29 1
14A411A LR053994
配線 - バンパー
Autom Perpendicular Parking System, Surround Camera System, With Front Fog Lamps, With Front Parking Aid / Located In Front Bumper / From: EA309591 / To: EA999999 		$344.08 1
14A411A LR058427
配線 - バンパー
Less Automated Parking System, Less Camera System, With Front Fog Lamps, With Front Parking Aid / Located In Front Bumper / From: EA309591 / To: EA999999 		$208.31 1
14A411A LR058428
ワイヤー - ジャンパー
Less Automated Parking System, Surround Camera System, With Front Fog Lamps, With Front Parking Aid / Located In Front Bumper / From: EA309591 / To: EA999999 		$242.72 1
14A411A LR058434
配線 - バンパー
Autom Perpendicular Parking System, Less Camera System, With Front Fog Lamps, With Front Parking Aid / Located In Front Bumper / From: EA309591 / To: EA999999 		$161.78 1
14A411A LR058437
配線 - バンパー
Less Automated Parking System, Less Front Fog Lamps, Surround Camera System, With Front Parking Aid / Located In Front Bumper / From: EA309591 / To: EA999999 		$151.94 1
14A411A LR058438
配線 - バンパー
Autom Perpendicular Parking System, Less Front Fog Lamps, Surround Camera System, With Front Parking Aid / Located In Front Bumper / From: EA309591 / To: EA999999 		$162.72 1
14A411A LR058440
配線 - バンパー
Less Automated Parking System, Less Camera System, Less Front Fog Lamps, With Front Parking Aid / Located In Front Bumper / From: EA309591 / To: EA999999 		$162.72 1
14A411A LR058441
配線 - バンパー
Less Camera System, Less Front Fog Lamps, With Automated Parking System, With Front Parking Aid / Located In Front Bumper / From: EA309591 / To: EA999999 		$162.72 1
14A411A LR058442
配線 - バンパー
Less Automated Parking System, Less Front Fog Lamps, Less Front Parking Aid, Surround Camera System / Located In Front Bumper / From: EA309591 / To: EA999999 		$162.72 1
14A411A LR058435
配線 - バンパー
Less Automated Parking System, Less Front Parking Aid, Surround Camera System, With Front Fog Lamps / Located In Front Bumper / From: EA309591 / To: EA999999 		$162.72 1
14A411A LR058436
配線 - バンパー
Less Automated Parking System, Less Camera System, Less Front Parking Aid, With Front Fog Lamps / Located In Front Bumper / From: EA309591 / To: EA999999 		$162.72 1
14A411A LR063949
配線 - バンパー
Autom Perpendicular Parking System, Surround Camera System, With Front Fog Lamps, With Front Parking Aid / Located In Front Bumper / From: FA000001 / To: FA999999 		$271.38 1
14A411A LR063951
配線 - バンパー
Less Automated Parking System, Rear View Camera-Fixed, With Front Fog Lamps, With Front Parking Aid / Located In Front Bumper / From: FA000001 / To: FA999999 		$133.24 1
14A411A LR063953
配線 - バンパー
Less Automated Parking System, Surround Camera System, With Front Fog Lamps, With Front Parking Aid / Located In Front Bumper / From: FA000001 / To: FA999999 		$316.31 1
14A411A LR063954
配線 - バンパー
Autom Perpendicular Parking System, Rear View Camera-Fixed, With Front Fog Lamps, With Front Parking Aid / Located In Front Bumper / From: FA000001 / To: FA999999 		$133.24 1
14A411A LR063955
配線 - バンパー
Less Automated Parking System, Less Front Fog Lamps, Surround Camera System, With Front Parking Aid / Located In Front Bumper / From: FA000001 / To: FA999999 		$231.79 1
14A411A LR063956
配線 - バンパー
Less Front Fog Lamps, Surround Camera System, With Automated Parking System, With Front Parking Aid / Located In Front Bumper / From: FA000001 / To: FA999999 		$203.03 1
14A411A LR063957
配線 - バンパー
Less Automated Parking System, Less Camera System, Less Front Fog Lamps, With Front Parking Aid / Located In Front Bumper / From: FA000001 / To: FA999999 		$162.72 1
14A411A LR063959
配線 - バンパー
Less Automated Parking System, Less Front Fog Lamps, Less Front Parking Aid, Surround Camera System / Located In Front Bumper / From: FA000001 / To: FA999999 		$191.30 1
14A411A LR063977
配線 - バンパー
Less Automated Parking System, Less Front Parking Aid, Surround Camera System, With Front Fog Lamps / Located In Front Bumper / From: FA000001 / To: FA999999 		$205.09 1
14A411A LR063978
配線 - バンパー
Less Automated Parking System, Less Camera System, Less Front Parking Aid, With Front Fog Lamps / Located In Front Bumper / From: FA000001 / To: FA999999 		$133.24 1
14A411A LR063958
配線 - バンパー
Autom Perpendicular Parking System, Less Camera System, Less Front Fog Lamps, With Front Parking Aid / Located In Front Bumper / From: FA000001 / To: FA999999 		$133.24 1
14A411A LR075695
配線 - バンパー
Less Camera System, With Automated Parking System, With Front Fog Lamps, With Front Parking Aid / Located In Front Bumper / From: GA000001 / To: GA599282 		$223.16 1
14A411A LR075696
配線 - バンパー
Autom Perpendicular Parking System, Less Front Fog Lamps, Surround Camera System, With Front Parking Aid / Located In Front Bumper / From: GA000001 / To: GA599282 		$286.91 1
14A411A LR075697
配線 - バンパー
Less Front Fog Lamps, Rear View Camera-Fixed, With Automated Parking System, With Front Parking Aid / Located In Front Bumper / From: GA000001 / To: GA599282 		$255.03 1
14A411A LR089641
配線 - バンパー
Less Automated Parking System, Less Front Parking Aid, Surround Camera System, With Front Fog Lamps / Located In Front Bumper / From: GA599283 / To: GA999999 		$223.16 1
14A411A LR089642
配線 - バンパー
Less Automated Parking System, Less Camera System, Less Front Parking Aid, With Front Fog Lamps / Located In Front Bumper / From: GA599283 / To: GA999999 		$223.16 1
14A411A LR089643
配線 - バンパー
Less Automated Parking System, Less Front Fog Lamps, Less Front Parking Aid, Surround Camera System / Located In Front Bumper / From: GA599283 / To: GA999999 		$286.91 1
14A411A LR089644
配線 - バンパー
Less Automated Parking System, Less Camera System, Less Front Fog Lamps, With Front Parking Aid / Located In Front Bumper / From: GA599283 / To: GA999999 		$255.03 1
14A411A LR089512
配線 - バンパー
Less Camera System, With Front Fog Lamps, With Front Parking Aid, With Park Side Flank Guard / Located In Front Bumper / From: HA000001 / To: HA999999 		$255.39 1
14A411A LR089509
配線 - バンパー
Surround Camera System, With Front Fog Lamps, With Front Parking Aid, With Park Side Flank Guard / Located In Front Bumper / From: HA000001 / To: HA999999 		$272.31 1
14A411A LR089510
配線 - バンパー
Less Camera System, Less Park Side Guard, With Front Fog Lamps, With Front Parking Aid / Located In Front Bumper / From: HA000001 / To: HA999999 		$255.39 1
14A411A LR089511
配線 - バンパー
Less Park Side Guard, Surround Camera System, With Front Fog Lamps, With Front Parking Aid / Located In Front Bumper / From: HA000001 / To: HA999999 		$272.31 1
14A411A LR089513
配線 - バンパー
Less Front Parking Aid, Less Park Side Guard, Surround Camera System, With Front Fog Lamps / Located In Front Bumper / From: HA000001 / To: HA999999 		$241.64 1
14A411A LR089514
配線 - バンパー
Less Camera System, Less Front Parking Aid, Less Park Side Guard, With Front Fog Lamps / Located In Front Bumper / From: HA000001 / To: HA999999 		$183.91 1
14A411A LR089515
配線 - バンパー
Less Front Fog Lamps, Less Park Side Guard, Surround Camera System, With Front Parking Aid / Located In Front Bumper / From: HA000001 / To: HA999999 		$231.38 1
14A411A LR089516
配線 - バンパー
Less Front Fog Lamps, Surround Camera System, With Front Parking Aid, With Park Side Flank Guard / Located In Front Bumper / From: HA000001 / To: HA999999 		$231.38 1
14A411A LR089517
配線 - バンパー
Less Camera System, Less Front Fog Lamps, Less Park Side Guard, With Front Parking Aid / Located In Front Bumper / From: HA000001 / To: HA999999 		$214.51 1
14A411A LR089518
配線 - バンパー
Less Camera System, Less Front Fog Lamps, With Front Parking Aid, With Park Side Flank Guard / Located In Front Bumper / From: HA000001 / To: HA999999 		$207.26 1
14A411A LR089519
配線 - バンパー
Less Front Fog Lamps, Less Front Parking Aid, Less Park Side Guard, Surround Camera System / Located In Front Bumper / From: HA000001 / To: HA999999 		$200.76 1
14A411A LR108065
配線 - バンパー
Less Automated Parking System, Surround Camera System, With Front Fog Lamps, With Front Parking Aid / Located In Front Bumper / From: GA599283 / To: GA999999 		$216.04 1
14A411A LR075694
配線 - バンパー
Autom Perpendicular Parking System, Surround Camera System, With Front Fog Lamps, With Front Parking Aid / Located In Front Bumper / From: GA000001 / To: GA599282 		$218.78 1
14A411A LR105644
配線 - バンパー
Less Automated Parking System, Surround Camera System, With Front Fog Lamps, With Front Parking Aid / Located In Front Bumper / From: GA000001 / To: GA599282 		$216.04 1
14A411A LR102266
配線 - バンパー
Less Camera System, Less Front Parking Aid, Less Park Side Guard, With Front Fog Lamps / Located In Front Bumper / From: JA000001 / To: JA999999 		$207.44 1
14A411A LR102267
配線 - バンパー
Less Camera System, Less Park Side Guard, With Front Fog Lamps, With Front Parking Aid / Located In Front Bumper / From: JA000001 / To: JA999999 		$269.65 1
14A411A LR102268
配線 - バンパー
Less Camera System, With Front Fog Lamps, With Front Parking Aid, With Park Side Flank Guard / Located In Front Bumper / From: JA000001 / To: JA999999 		$269.65 1
14A411A LR102269
配線 - バンパー
Less Front Parking Aid, Less Park Side Guard, Surround Camera System, With Front Fog Lamps / Located In Front Bumper / From: JA000001 / To: JA999999 		$207.44 1
14A411A LR102270
配線 - バンパー
Less Park Side Guard, Surround Camera System, With Front Fog Lamps, With Front Parking Aid / Located In Front Bumper / From: JA000001 / To: JA999999 		$269.65 1
14A411A LR102271
配線 - バンパー
Surround Camera System, With Front Fog Lamps, With Front Parking Aid, With Park Side Flank Guard / Located In Front Bumper / From: JA000001 / To: JA999999 		$269.65 1
14A411A LR102272
配線 - バンパー
Less Camera System, Less Front Fog Lamps, Less Park Side Guard, With Front Parking Aid / Located In Front Bumper / From: JA000001 / To: JA999999 		$222.93 1
14A411A LR102273
配線 - バンパー
Less Camera System, Less Front Fog Lamps, With Front Parking Aid, With Park Side Flank Guard / Located In Front Bumper / From: JA000001 / To: JA999999 		$192.59 1
14A411A LR102274
配線 - バンパー
Less Front Fog Lamps, Less Front Parking Aid, Less Park Side Guard, Surround Camera System / Located In Front Bumper / From: JA000001 / To: JA999999 		$171.55 1
14A411A LR102275
配線 - バンパー
Less Front Fog Lamps, Less Park Side Guard, Surround Camera System, With Front Parking Aid / Located In Front Bumper / From: JA000001 / To: JA999999 		$222.93 1
14A411A LR102276
配線 - バンパー
Less Front Fog Lamps, Surround Camera System, With Front Parking Aid, With Park Side Flank Guard / Located In Front Bumper / From: JA000001 / To: JA999999 		$222.93 1
14A411A LR120638
配線 - バンパー
Front And Rear Parking Aid, Less Camera System, With Front Fog Lamps / Located In Front Bumper / From: KA000001 		$182.44 1
14A411A LR120639
配線 - バンパー
360 Parking Aid, Less Camera System, With Front Fog Lamps / Located In Front Bumper / From: KA000001 		$182.44 1
14A411A LR120640
配線 - バンパー
Front And Rear Parking Aid, Surround Camera System, With Front Fog Lamps / Located In Front Bumper / From: KA000001 		$182.44 1
14A411A LR120641
配線 - バンパー
360 Parking Aid, Surround Camera System, With Front Fog Lamps / Located In Front Bumper / From: KA000001 		$244.62 1
14A411A LR120642
配線 - バンパー
Front And Rear Parking Aid, Less Camera System, Less Front Fog Lamps / Located In Front Bumper / From: KA000001 		$182.44 1
14A411A LR120643
配線 - バンパー
360 Parking Aid, Less Camera System, Less Front Fog Lamps / Located In Front Bumper / From: KA000001 		$182.44 1
14A411A LR120644
配線 - バンパー
Front And Rear Parking Aid, Less Front Fog Lamps, Surround Camera System / Located In Front Bumper / From: KA000001 		$182.44 1
14A411A LR120645
配線 - バンパー
360 Parking Aid, Less Front Fog Lamps, Surround Camera System / Located In Front Bumper / From: KA000001 		$182.44 1
14A411B LR049994
配線 - ブラインドスポットモニター
Sensor - Blind Spot Monitor 		$102.42 1
15B484 LR050250
配線 - バンパー
With Rear Parking Aid / Located In Rear Bumper / To: EA309590 		$90.43 1
15B484 LR050249
配線 - バンパー
Autom Perpendicular Parking System / Located In Rear Bumper / To: EA309590 		$91.81 1
15B484 LR053995
配線 - バンパー
Autom Perpendicular Parking System / Located In Rear Bumper / From: EA309591 / To: FA999999 		$96.61 1
15B484 LR053996
配線 - バンパー
With Rear Parking Aid / Located In Rear Bumper / From: EA309591 / To: FA999999 		$119.55 1
15B484 LR076912
配線 - バンパー
Autom Perpendicular Parking System, Tailgate - Manual One Piece / Located In Rear Bumper / From: GA000001 / To: GA599282 		$249.47 1
15B484 LR076913
配線 - バンパー
Tailgate - Manual One Piece, With Automated Parking System / Located In Rear Bumper / From: GA000001 / To: GA599282 		$249.47 1
15B484 LR076914
ワイヤー - ジャンパー
Autom Perpendicular Parking System, Tailgate - Hands Free / Located In Rear Bumper / From: GA000001 / To: GA599282 		$189.62 1
15B484 LR076915
配線 - バンパー
Tailgate - Hands Free, With Automated Parking System / Located In Rear Bumper / From: GA000001 / To: GA599282 		$249.47 1
15B484 LR089645
配線 - バンパー
Autom Perpendicular Parking System, Tailgate - Manual One Piece / Located In Rear Bumper / From: GA599283 / To: GA999999 		$231.79 1
15B484 LR089646
配線 - バンパー
Tailgate - Manual One Piece, With Automated Parking System / Located In Rear Bumper / From: GA599283 / To: GA999999 		$231.79 1
15B484 LR089647
配線 - バンパー
Autom Perpendicular Parking System, Tailgate - Hands Free / Located In Rear Bumper / From: GA599283 / To: GA999999 		$176.14 1
15B484 LR089648
配線 - バンパー
Tailgate - Hands Free, With Automated Parking System / Located In Rear Bumper / From: GA599283 / To: GA999999 		$249.47 1
15B484 LR089523
配線 - バンパー
Tailgate - Manual One Piece, With Park Side Flank Guard / Located In Rear Bumper / From: HA000001 / To: HA999999 		$255.39 1
15B484 LR089524
配線 - バンパー
Less Park Side Guard, Tailgate - Manual One Piece / Located In Rear Bumper / From: HA000001 / To: HA999999 		$194.11 1
15B484 LR089525
配線 - バンパー
Tailgate - Hands Free, With Park Side Flank Guard / Located In Rear Bumper / From: HA000001 / To: HA999999 		$255.39 1
15B484 LR089526
配線 - バンパー
Less Park Side Guard, Tailgate - Hands Free / Located In Rear Bumper / From: HA000001 / To: HA999999 		$194.11 1
15B484 LR102281
配線 - バンパー
Less Park Side Guard, Tailgate - Powered One Piece / Located In Rear Bumper / From: JA000001 / To: JA999999 		$128.41 1
15B484 LR102282
配線 - バンパー
Tailgate - Powered One Piece, With Park Side Flank Guard / Located In Rear Bumper / From: JA000001 / To: JA999999 		$128.41 1
15B484 LR102283
配線 - バンパー
Less Park Side Guard, Tailgate - Hands Free / Located In Rear Bumper / From: JA000001 / To: JA999999 		$128.41 1
15B484 LR102284
配線 - バンパー
Tailgate - Hands Free, With Park Side Flank Guard / Located In Rear Bumper / From: JA000001 / To: JA999999 		$128.41 1
15B484 LR120656
配線 - バンパー
Front And Rear Parking Aid, With Conventional Tailgate / Located In Rear Bumper / From: KA000001 / To: KA999999 		$158.15 1
15B484 LR120657
配線 - バンパー
360 Parking Aid, Tailgate-Powered Upper / Located In Rear Bumper / From: KA000001 / To: KA999999 		$161.28 1
15B484 LR120658
配線 - バンパー
Front And Rear Parking Aid, Tailgate - Hands Free / Located In Rear Bumper / From: KA000001 / To: KA999999 		$158.15 1
15B484 LR120659
配線 - バンパー
360 Parking Aid, Tailgate - Hands Free / Located In Rear Bumper / From: KA000001 / To: KA999999 		$158.15 1
15B484 LR133299
ワイヤー - ジャンパー
Front And Rear Parking Aid, Tailgate-Powered Upper / Located In Rear Bumper / From: LA000001 		$241.72 1
15B484 LR133300
ワイヤー - ジャンパー
360 Parking Aid, Tailgate-Powered Upper / Located In Rear Bumper / From: LA000001 		$241.72 1
15B484 LR133301
ワイヤー - ジャンパー
Front And Rear Parking Aid, Tailgate - Hands Free / Located In Rear Bumper / From: LA000001 		$241.72 1
15B484 LR133302
ワイヤー - ジャンパー
360 Parking Aid, Tailgate - Hands Free / Located In Rear Bumper / From: LA000001 		$241.72 1
2221A LR060969
キット - ワイヤー
Front Bumper 		$31.13 1
2221B LR060970
キット - ワイヤー
Rear Bumper 		$27.41 1

探しているものが見つかりませんか?

すべて見る: Land Rover バンパー チューニングパーツ 助けが必要ですか?お電話ください

カートを見る/チェックアウト
