電気配線-ボディ・リヤ（バンパー、ソリフル工場製） ((V)よりHa000001)

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6]

自分の役割を見つける

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] - 電気配線-ボディ・リヤ（バンパー、ソリフル工場製） ((V)よりHA000001)

分解部品図を表示して、探している部品を見つけます:
  • 図をドラッグして位置を変更できます
  • スクロール、ピンチ、または and buttons
  • 部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。
パートキー
IN
在庫あり
AS
もうすぐ到着します
TO
注文するには
PE
お問い合わせください

写真 部品番号 説明 価格(各) ストック
LR087136 配線 - バンパー $290.73 注文するには
LR087137 配線 - バンパー $281.70 注文するには
LR087138 配線 - バンパー $166.35 注文するには
...and 35 more part variants. See table on right for more details.
写真 部品番号 説明 価格(各) ストック
LR087147 配線 - バンパー $117.44 注文するには
LR087148 配線 - バンパー $97.87 注文するには
LR087151 配線 - バンパー $97.87 注文するには
...and 9 more part variants. See table on right for more details.
すべて見る

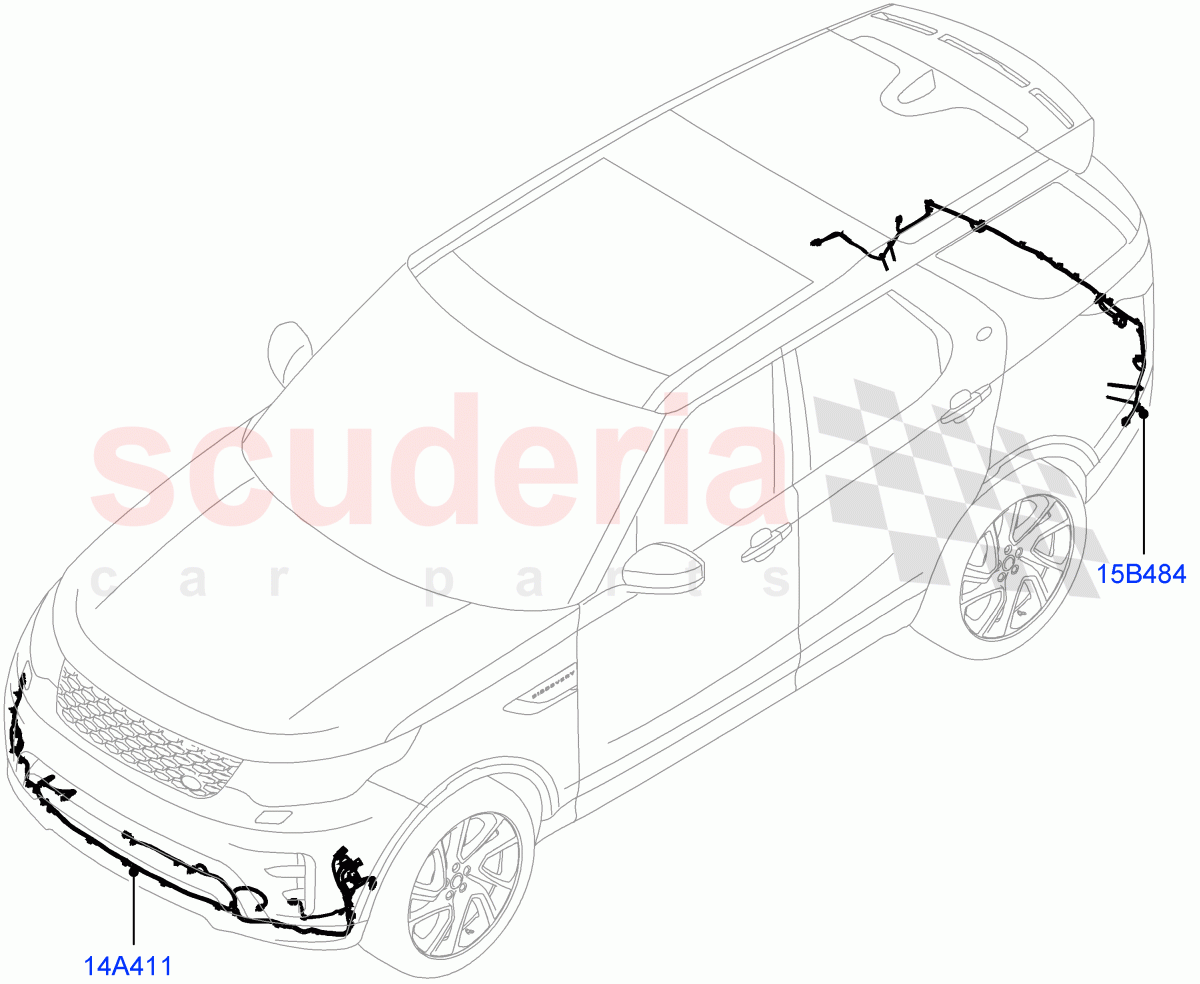

Electrical Wiring - Body And Rear (Bumper, Solihull Plant Build) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] ダイアグラム タップして拡大します
# 部品詳細 価格 （各） 図の数量 カートに追加
14A411 LR087136
配線 - バンパー
Surround Camera System, With Front Fog Lamps, With Front Parking Aid, With Park Side Flank Guard / Located In Front Bumper / To: HA999999 		$290.73 1
14A411 LR087137
配線 - バンパー
Less Park Side Guard, Surround Camera System, With Front Fog Lamps, With Front Parking Aid / Located In Front Bumper / To: HA999999 		$281.70 1
14A411 LR087138
配線 - バンパー
Less Front Fog Lamps, Surround Camera System, With Front Parking Aid, With Park Side Flank Guard / Located In Front Bumper / To: HA999999 		$166.35 1
14A411 LR087139
配線 - バンパー
Less Front Fog Lamps, Less Park Side Guard, Surround Camera System, With Front Parking Aid / Located In Front Bumper / To: HA999999 		$97.87 1
14A411 LR087140
配線 - バンパー
Less Front Parking Aid, Less Park Side Guard, Surround Camera System, With Front Fog Lamps / Located In Front Bumper / To: HA999999 		$97.87 1
14A411 LR087141
配線 - バンパー
Less Front Fog Lamps, Less Front Parking Aid, Less Park Side Guard, Surround Camera System / Located In Front Bumper / To: HA999999 		$97.87 1
14A411 LR087142
配線 - バンパー
Less Camera System, With Front Fog Lamps, With Front Parking Aid, With Park Side Flank Guard / Located In Front Bumper / To: HA999999 		$97.87 1
14A411 LR087143
配線 - バンパー
Less Camera System, Less Park Side Guard, With Front Fog Lamps, With Front Parking Aid / Located In Front Bumper / To: HA999999 		$97.87 1
14A411 LR087144
配線 - バンパー
Less Camera System, Less Front Fog Lamps, With Front Parking Aid, With Park Side Flank Guard / Located In Front Bumper / To: HA999999 		$97.87 1
14A411 LR087145
配線 - バンパー
Less Camera System, Less Front Fog Lamps, Less Park Side Guard, With Front Parking Aid / Located In Front Bumper / To: HA999999 		$97.87 1
14A411 LR087146
配線 - バンパー
Less Camera System, Less Front Parking Aid, Less Park Side Guard, With Front Fog Lamps / Located In Front Bumper / To: HA999999 		$97.87 1
14A411 LR110205
配線 - バンパー
Surround Camera System, With Front Fog Lamps, With Front Parking Aid, With Park Side Flank Guard / Located In Front Bumper / From: JA000001 / To: JA999999 		$290.30 1
14A411 LR110206
配線 - バンパー
Less Park Side Guard, Surround Camera System, With Front Fog Lamps, With Front Parking Aid / Located In Front Bumper / From: JA000001 / To: JA999999 		$282.13 1
14A411 LR110207
配線 - バンパー
Less Front Fog Lamps, Surround Camera System, With Front Parking Aid, With Park Side Flank Guard / Located In Front Bumper / From: JA000001 / To: JA999999 		$249.21 1
14A411 LR110208
配線 - バンパー
Less Front Fog Lamps, Less Park Side Guard, Surround Camera System, With Front Parking Aid / Located In Front Bumper / From: JA000001 / To: JA999999 		$144.21 1
14A411 LR110209
配線 - バンパー
Less Front Parking Aid, Less Park Side Guard, Surround Camera System, With Front Fog Lamps / Located In Front Bumper / From: JA000001 / To: JA999999 		$91.16 1
14A411 LR110210
配線 - バンパー
Less Front Fog Lamps, Less Front Parking Aid, Less Park Side Guard, Surround Camera System / Located In Front Bumper / From: JA000001 / To: JA999999 		$91.16 1
14A411 LR110211
配線 - バンパー
Less Camera System, With Front Fog Lamps, With Front Parking Aid, With Park Side Flank Guard / Located In Front Bumper / From: JA000001 / To: JA999999 		$91.16 1
14A411 LR110212
配線 - バンパー
Less Park Side Guard, Rear View Camera-Fixed, With Front Fog Lamps, With Front Parking Aid / Located In Front Bumper / From: JA000001 / To: JA999999 		$91.16 1
14A411 LR110213
配線 - バンパー
Less Camera System, Less Front Fog Lamps, With Front Parking Aid, With Park Side Flank Guard / Located In Front Bumper / From: JA000001 / To: JA999999 		$91.16 1
14A411 LR110214
配線 - バンパー
Less Camera System, Less Front Fog Lamps, Less Park Side Guard, With Front Parking Aid / Located In Front Bumper / From: JA000001 / To: JA999999 		$91.16 1
14A411 LR110215
配線 - バンパー
Less Front Parking Aid, Less Park Side Guard, Rear View Camera-Fixed, With Front Fog Lamps / Located In Front Bumper / From: JA000001 / To: JA999999 		$91.16 1
14A411 LR120646
配線 - バンパー
Armoured, Front And Rear Parking Aid, Surround Camera System, With Front Fog Lamps / Located In Front Bumper / From: KA000001 / To: KA087924 		$168.40 1
14A411 LR120647
配線 - バンパー
360 Parking Aid and Autobrake, Armoured, Surround Camera System, With Front Fog Lamps / Located In Front Bumper / From: KA000001 / To: KA087924 		$160.32 1
14A411 LR120648
配線 - バンパー
Front And Rear Parking Aid+Autobrk, Less Front Fog Lamps, Surround Camera System, Version - Commercial / Located In Front Bumper / From: KA000001 / To: KA515321 		$168.40 1
14A411 LR120649
配線 - バンパー
360 Parking Aid, Armoured, Less Front Fog Lamps, Surround Camera System / Located In Front Bumper / From: KA000001 / To: KA087924 		$160.41 1
14A411 LR120650
配線 - バンパー
Armoured, Front And Rear Parking Aid, Less Camera System, With Front Fog Lamps / Located In Front Bumper / From: KA000001 / To: KA087924 		$168.40 1
14A411 LR127560
配線 - バンパー
360 Parking Aid and Autobrake, Less Camera System, Version - Commercial, With Front Fog Lamps / Located In Front Bumper / From: KA000001 / To: KA087924 		$168.40 1
14A411 LR120652
配線 - バンパー
Front And Rear Parking Aid, Less Camera System, Less Front Fog Lamps, Version - Core / Located In Front Bumper / From: KA000001 / To: KA087924 		$168.40 1
14A411 LR120653
配線 - バンパー
360 Parking Aid and Autobrake, Less Camera System, Less Front Fog Lamps, Version - Core / Located In Front Bumper / From: KA000001 / To: KA087924 		$168.40 1
14A411 LR127557
配線 - バンパー
Armoured, Front And Rear Parking Aid+Autobrk, Less Front Fog Lamps, Surround Camera System / Located In Front Bumper / From: KA515322 		$219.25 1
14A411 LR127555
配線 - バンパー
Armoured, Front And Rear Parking Aid+Autobrk, Surround Camera System, With Front Fog Lamps / Located In Front Bumper / From: KA087925 		$219.25 1
14A411 LR127556
配線 - バンパー
360 Parking Aid, Surround Camera System, Version - Commercial, With Front Fog Lamps / Located In Front Bumper / From: KA087925 		$219.25 1
14A411 LR127558
配線 - バンパー
360 Parking Aid, Less Front Fog Lamps, Surround Camera System, Version - Core / Located In Front Bumper / From: KA087925 		$165.94 1
14A411 LR127559
配線 - バンパー
Front And Rear Parking Aid, Rear View Camera-Fixed, Version - Core, With Front Fog Lamps / Located In Front Bumper / From: KA087925 		$208.71 1
14A411 LR127560
配線 - バンパー
360 Parking Aid, Armoured, Rear View Camera-Fixed, With Front Fog Lamps / Located In Front Bumper / From: KA087925 		$168.40 1
14A411 LR127561
配線 - バンパー
Front And Rear Parking Aid+Autobrk, Less Front Fog Lamps, Rear View Camera-Fixed, Version - Core / Located In Front Bumper / From: KA087925 		$219.25 1
14A411 LR127562
配線 - バンパー
360 Parking Aid, Less Front Fog Lamps, Rear View Camera-Fixed, Version - Commercial / Located In Front Bumper / From: KA087925 		$168.40 1
15B484 LR087147
配線 - バンパー
With Park Side Flank Guard, With Rear Parking Aid / Located In Rear Bumper / To: HA999999 		$117.44 1
15B484 LR087148
配線 - バンパー
Less Park Side Guard, With Rear Parking Aid / Located In Rear Bumper / To: HA999999 		$97.87 1
15B484 LR087151
配線 - バンパー
Less Park Side Guard, Less Rear Parking Aid / Located In Rear Bumper / To: HA999999 		$97.87 1
15B484 LR102287
配線 - バンパー
With Keyless Start, With Park Side Flank Guard, With Rear Parking Aid / Located In Rear Bumper / From: JA000001 / To: JA999999 		$154.07 1
15B484 LR102288
配線 - バンパー
Less Park Side Guard, With Keyless Start, With Rear Parking Aid / Located In Rear Bumper / From: JA000001 / To: JA999999 		$154.07 1
15B484 LR102289
配線 - バンパー
Keyless Entry/Start - Passive, With Park Side Flank Guard, With Rear Parking Aid / Located In Rear Bumper / From: JA000001 / To: JA999999 		$154.07 1
15B484 LR102290
配線 - バンパー
Keyless Entry/Start - Passive, Less Park Side Guard, With Rear Parking Aid / Located In Rear Bumper / From: JA000001 / To: JA999999 		$154.07 1
15B484 LR102291
配線 - バンパー
Keyless Entry/Start - Passive, Less Park Side Guard, Less Rear Parking Aid / Located In Rear Bumper / From: JA000001 / To: JA999999 		$118.48 1
15B484 LR120660
配線 - バンパー
360 Parking Aid and Autobrake, Armoured, With Keyless Start / Located In Rear Bumper / From: KA000001 		$145.97 1
15B484 LR120661
配線 - バンパー
Front And Rear Parking Aid+Autobrk, Version - Commercial, With Keyless Start / Located In Rear Bumper / From: KA000001 		$145.97 1
15B484 LR120662
配線 - バンパー
360 Parking Aid and Autobrake, Keyless Entry/Start - Passive, Version - Commercial / Located In Rear Bumper / From: KA000001 		$145.97 1
15B484 LR120663
配線 - バンパー
Armoured, Front And Rear Parking Aid+Autobrk, Keyless Entry/Start - Passive / Located In Rear Bumper / From: KA000001 		$145.97 1
