Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - 電装品（インフォテイメント-オーバーレイ補修用ハーネス）（英国）（ハ...

分解部品図を表示して、探している部品を見つけます:
  • 図をドラッグして位置を変更できます
  • スクロール、ピンチ、または and buttons
  • 部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。
パートキー
IN
在庫あり
AS
もうすぐ到着します
TO
注文するには
PE
お問い合わせください

写真 部品番号 説明 価格(各) ストック
LR104796 配線 - 修理 $79.57 注文するには
LR110596 配線 - 修理 $70.69 注文するには
LR110597 配線 - 修理 $25.64 注文するには
...and 41 more part variants. See table on right for more details.
すべて見る

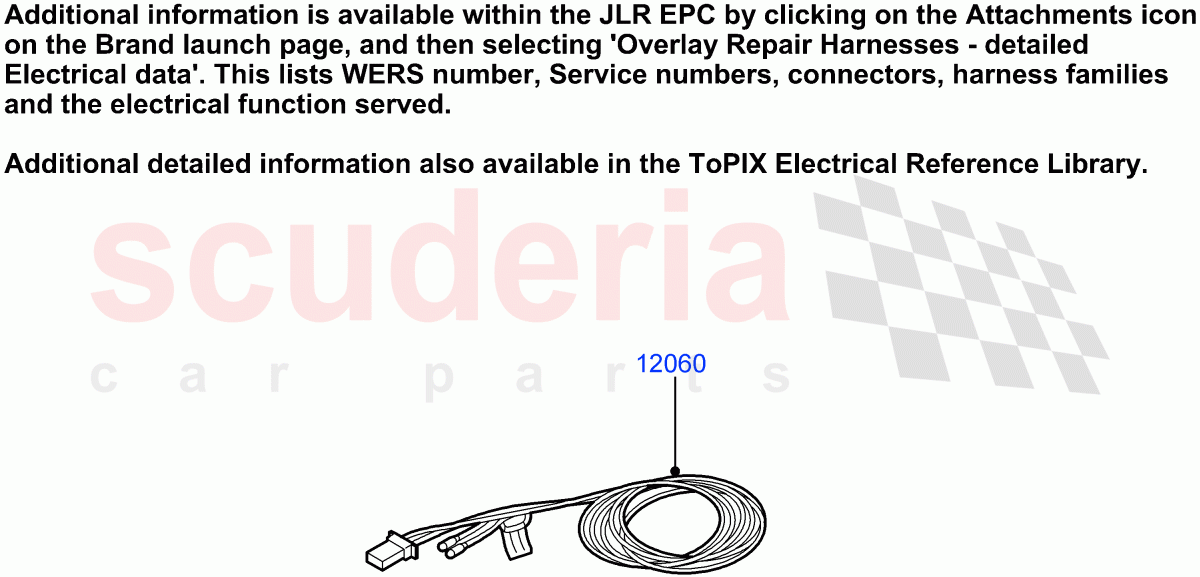

Electrical Repair Items (Infotainment - Overlay Repair Harnesses) (Halewood (UK)) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] ダイアグラム タップして拡大します
# 部品詳細 価格 （各） 図の数量 カートに追加
12060 LR104796
配線 - 修理
From Connector C49F To Connector C4MP19A, Upper Tailgate Link Harness To Rear View Camera / From: HH000001 		$79.57 1
12060 LR110596
配線 - 修理
Controller Master Infotainment To Tailgate Harness, From Connector C3MA01HA To Connector C49J / From: JH000001 		$70.69 1
12060 LR110597
配線 - 修理
From Connector C4MT01F to Connector C9ME153, Module Telematic Control To Antenna Wifi, Rear / From: JH000001 		$25.64 1
12060 LR110598
配線 - 修理
Controller Master Infotainment To Instrument Panel Harness, From Connector C3MA01F To Connector C23T / From: JH000001 		$44.68 1
12060 LR110601
配線 - 修理
Controller Master Infotainment To Tailgate Harness, From Connector C3MA01T To Connector C49E / From: JH000001 		$26.51 1
12060 LR104797
配線 - 修理
From Connector C23AM To Connector C9ME114, Infotainment Link Harness To SDARS Antenna / From: HH000001 		$25.73 1
12060 LR104798
配線 - 修理
From Connector C23AM To Connector C9ME113, Infotainment Link Harness To Amplifier Antenna DAB / From: HH000001 		$24.83 1
12060 LR104799
配線 - 修理
From Connector C23R To Connector C9MN03A, Infotainment Link Harness To Antenna GPS / From: HH000001 		$25.08 1
12060 LR104800
配線 - 修理
From Connector C23R To Connector C4ME192B, Infotainment Link Harness To GPS Signal Splitter / From: HH000001 		$23.70 1
12060 LR104801
配線 - 修理
From Connector C4ME192A To Connector C9MN03A, GPS Signal Splitter To Antenna GPS / From: HH000001 		$23.74 1
12060 LR104802
配線 - 修理
From Connector C4MT01B To Connector C4ME192C, Module Telematic Control To GPS Signal Splittter / From: HH000001 		$21.75 1
12060 LR104803
配線 - 修理
From Connector C4MT01B To Connector C9MN03A, Module Telematic Control To Antenna GPS / From: HH000001 		$23.15 1
12060 LR104804
配線 - 修理
From Connector C23M To Connector C49A, Infotainment Harness To Upper Tailgate Link Harness / From: HH000001 		$32.17 1
12060 LR104805
配線 - 修理
From Connector C4MT01C To Connector C9ME152C, Module Telematic Control To Antenna GSM / From: HH000001 		$23.49 1
12060 LR104806
配線 - 修理
Controller Master Infotainment Amplifier Antenna TV, From Connector C3MA01U to Connector C3ME32C/C3ME32B, RH Side / From: HH000001 		$37.45 1
12060 LR104807
配線 - 修理
Controller Master Infotainment Amplifier Antenna TV, From Connector C3MA01U to Connector C3ME32D, LH Side / From: HH000001 		$26.92 1
12060 LR104808
配線 - 修理
From Connector C4MT01D To Connector C4ME202, Module Telematic Control To Module 3G Wifi / From: HH000001 		$31.27 1
12060 LR104809
配線 - 修理
From Connector C4MT01F to Connector C9ME153, Module Telematic Control To Antenna Wifi, Rear / From: HH000001 		$26.05 1
12060 LR104810
配線 - 修理
From Connector C4MT01G to Connector C9ME152B, Module Telematic Control To Antenna GSM / From: HH000001 		$23.18 1
12060 LR104811
配線 - 修理
Controller Master Infotainment To Antenna GPS, From Connector C3MA01P to Connector C9MN03A / From: HH000001 		$26.12 1
12060 LR104812
配線 - 修理
Controller Master Infotainment To Module Telematic Control, From Connector C3MA01F to Connector C4MT01E / From: HH000001 		$24.74 1
12060 LR104813
配線 - 修理
Controller Master Infotainment To GPS Signal Splitter, From Connector C3MA01P to Connector C4ME192B / From: HH000001 		$26.45 1
12060 LR104814
配線 - 修理
From (C3MA01R) To (C9ME114) Controller Master Infotainment To SDARS Antenna / From: HH000001 		$25.03 1
12060 LR104815
配線 - 修理
Controller Master Infotainment To Antenna Digital Radio Combiner, From Connector C3MA01T to Connector C9ME207A / From: HH000001 		$23.83 1
12060 LR104816
配線 - 修理
Controller Master Infotainment To Antenna DAB, From Connector C3MA01T to Connector C9ME164B / From: HH000001 		$25.61 1
12060 LR104817
配線 - 修理
Controller Master Infotainment To Tailgate Harness, From Connector C3MA01T to Connector C49A / From: HH000001 		$35.24 1
12060 LR104818
配線 - 修理
Controller Master Infotainment To Antenna TV & Digital Radio Band 3, From Connector C3MA01U to Connector C3ME32F / From: HH000001 		$26.89 1
12060 LR104819
配線 - 修理
From Connector C49E to Connector C9ME207B, Upper Tailgate Link Harness To Antenna Digital Radio Combiner / From: HH000001 		$26.34 1
12060 LR104820
配線 - 修理
Amplifier Antenna DAB To Antenna Digital Radio Combiner, From Connector C9ME113 to Connector C9ME207C / From: HH000001 		$27.41 1
12060 LR104821
配線 - 修理
Amplifier Antenna TV & FFBH To Main Body Harness, From Connector C3ME32EA to Connector C33Z / From: HH000001 		$32.02 1
12060 LR104822
配線 - 修理
Controller Master Infotainment Amplifier Antenna TV, From Connector C3MA01U to Connector C3ME32A, LH Side / From: HH000001 		$27.07 1
12060 LR066661
配線 - 修理
From Connector C23AM To Connector C9ME114, ICE Harness To SDARS Antenna / To: GH999999 		$31.57 1
12060 LR066662
配線 - 修理
From Connector C23AM To Connector C9ME113, ICE Harness To Amplifier Antenna DAB / To: GH999999 		$37.68 1
12060 LR066663
配線 - 修理
From Connector C23R To Connector C9MN03A, ICE Harness To GPS Antenna / To: GH999999 		$16.76 1
12060 LR066664
配線 - 修理
From Connector C23R To Connector C4ME192B, ICE Harness To GPS Signal Splitter / To: GH999999 		$17.63 1
12060 LR066665
配線 - 修理
From Connector C4ME192A To Connector C9MN03A, GPS Signal Splitter To Antenna GPS / To: GH999999 		$14.05 1
12060 LR066666
配線 - 修理
From Connector C4MT01B To Connector C4ME192C, Module Telematic Control To GPS Signal Splittter / To: GH999999 		$12.21 1
12060 LR066667
配線 - 修理
From Connector C4MT01B To Connector C9MN03A, Module Telematic Control To Antenna GPS / To: GH999999 		$14.90 1
12060 LR066668
配線 - 修理
From Connector C23AM To Connector C49E, ICE Harness To Telematics Harness / To: GH999999 		$36.66 1
12060 LR066669
配線 - 修理
From Connector C23M To Connector C49A, Infotainment Harness To Upper Tailgate Link Harness / To: GH999999 		$34.24 1
12060 LR066670
配線 - 修理
From Connector C4MT01C To Connector C9ME152C, Module Telematic Control To Antenna GPS / To: GH999999 		$15.41 1
12060 LR066671
配線 - 修理
From Connector C33BD To Connector C3ME32A/C3ME32B, Instrument Panel Harness To Amplifier Antenna TV / To: GH999999 		$46.14 1
12060 LR066672
配線 - 修理
From Connector C33BB To Connector C3ME32C/C3ME32D, Instrument Panel Harness To Amplifier Antenna TV / To: GH999999 		$44.02 1
12060 LR066673
配線 - 修理
From Connector C4MT01D To Connector C4ME202, Module Telematic Control To Antenna Upper Tailgate Link Harness / To: GH999999 		$280.67 1
